RCCN ST Standoff Twist Tie
  |
|
Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation, |

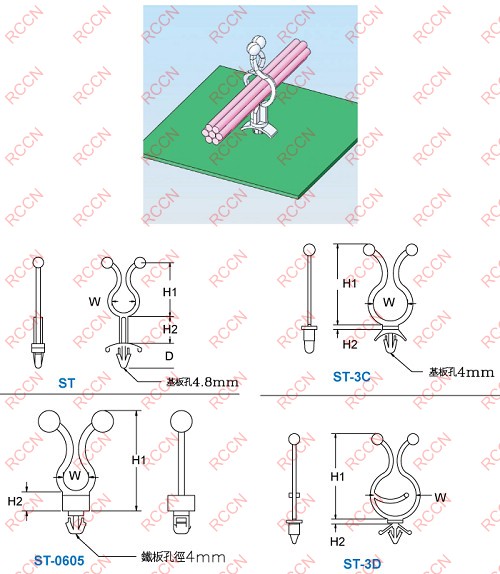

| Dimension | ||||||
| H1 | H2 | W | Panel hole | Suitable panel thickness |
||
|
ST-1
|
19.5 | 31.7 | 6.0 | 4.6-4.8 | 1.0-2.8 | (1000pcs) |
|
ST-2
|
27.8 | 21.2 | 11.0 | 4.8-5.0 | 1.0-2.8 | |
|
ST-3
|
27.3 | 4.7 | 10.4 | 4.6-4.8 | 1.0-2.8 | |
|
ST-3B
|
28.0 | 5.0 | 11.0 | 6.2-6.6 | 0.6-2.0 | |
|
ST-3C
|
32.0 | 5.0 | 15.0 | 4.6-4.8 | 0.5-1.6 | |
|
ST-3D
|
36.2 | 5.3 | 18.0 | 4.4-4.8 | 1.0-2.4 | |
|
ST-4S
|
27.9 | 13.0 | 11.0 | 4.2-4.8 | 1.0-2.4 | |
|
ST-4
|
31.3 | 11.1 | 15.0 | 4.6-4.8 | 1.0-2.0 | |
|
ST-0560
|
20.5 | 60.9 | 5.0 | 4.6-5.0 | 1.6-3.0 | |
|
ST-0605
|
19.3 | 5.3 | 6.1 | 4.0-4.4 | 2.4 | |
| ST-0701 | 22.0 | 1.3 | 7.0 | 4.6-4.8 | 1.0-2.8 | |
|
ST-1112
|
26.8 | 15.3 | 11 | 4.6-4.8 | 1.6-3.0 | |
|
ST-1247
|
27.2 | 50.5 | 11 | 4.6-4.8 | 1.6-3.0 | |
|
ST-1303
|
45.0 | 3.0 | 13.5 | 6.6 | 1.8-3.6 | |
| ST-1602 | 31.7 | 5.1 | 16.0 | 4.4-4.6 | 0.5-1.6 | |
| ST-2005 | 36.5 | 5.1 | 20 | 7.2-7.6 | 1.8-3.6 | |
|
ST-2403
|
44.2 | 3.2 | 23.5 | 4.8-5.0 | 0.5-2.6 | |
|
Item No. |
Dimension |
Packing |
||||
| H1 | H2 | W | Panel hole | Suitable panel thickness |
||
| ST-0703A | 10.6 | 3.1 | 7.1 | 4.8-5.0 | 1.0-3.2 | (1000pcs) |
| ST-0720A | 10.6 | 20.0 | 7.1 | 4.8-5.0 | 1.0-3.2 | |
| ST-0735A | 10.6 | 35.3 | 7.1 | 4.8-5.0 | 1.0-3.2 | |
| ST-1003A | 10.6 | 2.8 | 10.8 | 4.8-5.0 | 1.0-3.2 | |
| ST-1020A | 10.6 | 30.0 | 10.8 | 4.8-5.0 | 1.0-3.2 | |
| ST-1035A | 10.6 | 35.2 | 10.8 | 4.8-5.0 | 1.0-3.2 | |
| ST-1503A | 10.6 | 3.0 | 15 | 4.8-5.0 | 1.0-3.2 | |
| ST-1520A | 10.6 | 20.4 | 15 | 4.8-5.0 | 1.0-3.2 | |
| ST-1535A | 10.6 | 35.8 | 15 | 4.8-5.0 | 1.0-3.2 | |
| ST-2016A | 10.6 | 16.0 | 20 | 4.8-5.0 | 1.0-3.2 | |
| ST-2503A | 10.6 | 3.0 | 24.3 | 4.8-5.0 | 1.0-3.2 | |
| ST-1115A | 10.6 | 15.3 | 11.0 | 4.8-5.0 | 1.0-3.2 | |
| ST-2005A | 10.6 | 5.0 | 20.3 | 4.8-5.0 | 1.0-3.2 | |
| ST-0810A | 10.6 | 10.5 | 8 | 4.8-5.0 | 1.0-3.2 | |
| ST-0906A | 10.6 | 5.6 | 8.8 | 4.8-5.0 | 1.0-3.2 | |
| ST-1021C | 7.5 | 21.0 | 10.4 | 4.6-4.8 | 0.8-2.2 | |
| ST-0534C | 7.5 | 34.0 | 5.0 | 4.6-4.8 | 0.8-2.2 | |
| ST-1005C | 7.5 | 4.5 | 10.4 | 4.6-4.8 | 0.8-2.2 | |
| ST-0703C | 5.5 | 3.0 | 7.2 | 4.6-4.8 | 0.8-2.2 | |
| ST-1043C | 8.0 | 43.5 | 10.1 | 4.6-4.8 | 0.8-2.2 | |
