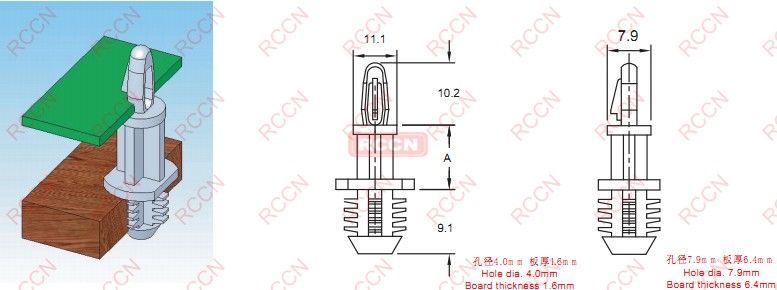

RCCN BS8 PC Blind Hole Mount Circuit Board Supports

 RCCN BS8 PC Blind Hole Mount Circuit Board Supports

Hole dia. 4.0mm
Board thickness 1.6mm

RCCN BS8 PC Blind Hole Mount Circuit Board Supports
Hole dia. 7.9mm
Board thickness 6.4mm

RCCN BS8 PC Blind Hole Mount Circuit Board Supports RCCN BS8 PC Blind Hole Mount Circuit Board Supports

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant|
Page number:B89



Item No.

 Head hole
dia.		 Head panel
thickness		 Bottom hole
dia.		 Bottom panel
thickness

Instance
A

Packing
BS8-4.8 4.0 1.6 7.9 6.4 4.8
1000pcs
BS8-6.4 4.0 1.6 7.9 6.4 6.4
BS8-9.5 4.0 1.6 7.9 6.4 9.5
BS8-12.7 4.0 1.6 7.9 6.4 12.7
BS8-15.9 4.0 1.6 7.9 6.4 15.9
BS8-19.1 4.0 1.6 7.9 6.4 19.1
BS8-22.2 4.0 1.6 7.9 6.4 22.2
BS8-25.4 4.0 1.6 7.9 6.4 25.4






 RCCN BS8 PC Blind Hole Mount Circuit Board Supports
