RCCN>>Product>>Terminal>> RCCN AES Copper Ture Terminals

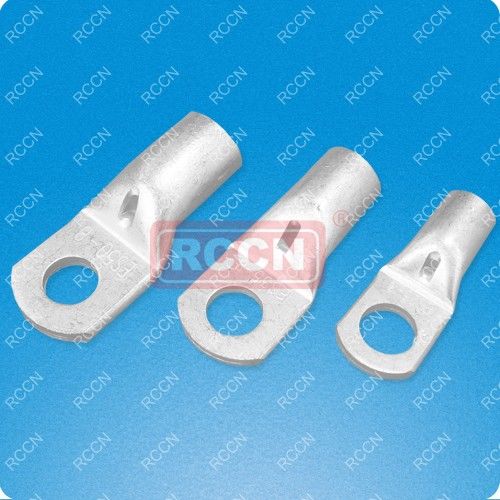

RCCN AES Copper Ture Terminals

Use note:this series installed by tool of YYT

Item No.	DIMENSION
Item No.	E	DΦ	dΦ	W	B	L
AES1.5-3	3.2	3.7	1.8	8.0	6.0	16.0
AES1.5-4	4.3	3.7	1.8	8.0	6.0	17.0
AES1.5-5	5.3	3.7	1.8	10.0	7.0	19.0
AES1.5-6	6.5	3.7	1.8	10.0	7.0	20.0
AES2.5-3	3.2	3.9	2.3	8.0	7.0	17.0
AES2.5-4	4.3	3.9	2.3	8.0	7.0	18.0
AES2.5-5	5.3	3.9	2.3	10.0	7.0	20.0
AES2.5-6	6.5	3.9	2.3	10.0	7.0	20.0
AES2.5-8	8.3	3.9	2.3	12.5	7.0	22.5
AES4-4	4.3	4.7	3.0	10.0	8.0	21.0
AES4-5	5.3	4.7	3.0	10.0	8.0	22.0
AES4-6	6.5	4.7	3.0	10.0	8.0	23
AES4-8	8.3	4.7	3.0	12.5	8.0	24
AES6-4	4.3	5.9	4.0	10.0	9.5	24.6
AES6-5	5.3	5.9	4.0	10.0	9.5	24.6
AES6-6	6.5	5.9	4.0	11.0	9.5	24.6
AES6-8	8.3	5.9	4.0	12.5	9.5	27.3
AES6-10	10.3	5.9	4.0	15.0	9.5	28.3
AES10-4	4.3	6.6	4.5	11.0	13.0	30
AES10-5	5.3	6.6	4.5	11.0	13.0	30
AES10-6	6.5	6.6	4.5	11.0	13.0	30
AES10-8	8.3	6.6	4.5	12.5	13.0	30
AES10-10	10.3	6.6	4.5	16.0	13.0	34
AES10-12	12.7	6.6	4.5	18.0	13.0	34
AES16-5	5.3	7.5	5.5	11.0	14.0	30.7
AES16-6	6.5	7.5	5.5	11.0	14.0	30.7
AES16-8	8.3	7.5	5.5	12.5	14.0	30.7
AES16-10	10.3	7.5	5.5	16.0	14.0	36
AES16-12	12.7	7.5	5.5	18.0	14.0	36
AES25-5	5.3	9.1	6.7	13.0	13.0	32
AES25-6	6.5	9.1	6.7	13.0	13.0	32
AES25-8	8.3	9.1	6.7	13.0	13.0	32
AES25-10	10.3	9.1	6.7	16.0	13.0	37
AES25-12	12.7	9.1	6.7	18.0	13.0	37
AES25-14	14.8	9.1	6.7	20.0	13.0	39
AES35-5	5.3	11	8.6	16.0	16.0	37
AES35-6	6.5	11	8.6	16.0	16.0	37
AES35-8	8.3	11	8.6	16.0	16.0	37
AES35-10	10.3	11	8.6	16.7	16.0	41.5
AES35-12	12.7	11	8.6	18.0	16.0	41.5
AES35-14	14.8	11	8.6	20.0	16.0	43.5
AES35-16	16.5	11	8.6	23.0	16.0	45.5
AES50-5	5.3	12.4	9.5	18.0	17.0	41
AES50-6	6.5	12.4	9.5	18.0	17.0	41
AES50-8	8.3	12.4	9.5	18.0	17.0	41
AES50-10	10.3	12.4	9.5	18.0	17.0	44
AES50-12	12.7	12.4	9.5	19.0	17.0	44
AES50-14	14.8	12.4	9.5	21.0	19.0	53
AES50-16	16.5	12.4	9.5	23.0	19.0	53
AES70-5	5.3	15	12	22.5	21.5	52.5
AES70-6	6.3	15	12	22.5	21.5	52.5
AES70-8	8.3	15	12	22.5	21.5	52.5
AES70-10	10.3	15	12	22.5	21.5	52.5
AES70-12	12.7	15	12	22.5	21.5	52.5
AES70-14	14.8	15	12	22.5	21.5	55
AES70-16	16.5	15	24.0	24.0	20.0	55
AES95-8	8.3	17	13.4	25.0	22.5	55
AES95-10	10.3	17	13.4	25.0	22.5	55
AES95-12	12.7	17	13.4	25.0	22.5	55
AES95-14	14.8	17	13.4	25.0	22.5	58.3
AES95-16	16.8	17	13.4	25.0	22.5	58.3
AES120-8	8.3	19	15	27.0	23.0	60
AES120-10	10.3	19	15	27.0	23.0	60
AES120-12	12.7	19	15	27.0	23.0	60
AES120-14	14.8	19	15	27.0	23.0	64
AES120-16	16.5	19	15	27.0	23.0	64
AES150-10	10.3	21.2	16.5	30.0	27.0	67
AES150-12	12.7	21.2	16.5	30.0	27.0	67
AES150-14	14.8	21.2	16.5	30.0	27.0	67
AES150-16	16.5	21.2	16.5	30.0	27.0	71.5
AES150-20	20.9	21.2	16.5	30.0	27.0	71.5
AES185-10	10.3	23	19	34.0	30.0	73
AES185-12	12.7	23	19	34.0	30.0	73
AES185-14	14.8	23	19	34.0	30.0	73
AES185-16	16.5	23	19	34.0	30.0	76
AES185-20	20.9	23	19	34.0	30.0	76
AES240-10	10.3	26.5	21	38.0	38.0	91.5
AES240-12	12.7	26.5	21	38.0	38.0	91.5
AES240-14	14.8	26.5	21	38.0	38.0	91.5
AES240-16	16.5	26.5	21	38.0	38.0	91.5
AES240-20	20.9	26.5	21	38.0	38.0	91.5
AES300-12	12.7	30	24.5	43.0	42.0	98
AES300-14	14.8	30	24.5	43.0	42.0	98
AES300-16	16.5	30	24.5	43.0	42.0	98
AES300-20	20.9	30	24.5	43.0	42.0	98
AES400-12	12.7	35	27	49.0	44.0	104
AES400-16	16.5	35	27	49.0	44.0	104
AES400-20	20.9	35	27	49.0	44.0	104
