RCCN>>Product>>Terminal>> RCCN ASC Copper Ture Terminals

RCCN ASC Copper Ture Terminals

Use note:this series installed by tool of YYT

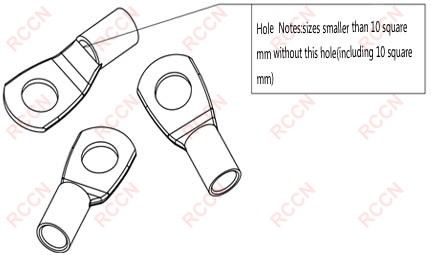

Item No.	DIMENSION
Item No.	E	DΦ	dΦ	W	B	L
ASC1.5-4	4.2	3.6	1.8	8.0	5.0	16.0
ASC1.5-5	5.2	3.6	1.8	10.0	5.0	17.0
ASC1.5-6	6.5	3.6	1.8	10.0	5.0	18.0
ASC2.5-4	4.2	3.9	2.4	8.0	7.0	18.0
ASC2.5-5	5.2	3.9	2.4	10.0	7.0	20.0
ASC2.5-6	6.5	3.9	2.4	10.0	7.0	20.0
ASC2.5-8	8.4	3.9	2.4	12.5	7.0	23.0
ASC4-4	4.2	4.7	3.1	10.0	7.0	20.0
ASC4-5	5.2	4.7	3.1	10.0	7.0	20.0
ASC4-6	6.5	4.7	3.1	10.0	7.0	20.0
ASC4-8	8.4	4.7	3.1	12.5	7.0	23.0
ASC6-4	4.2	5.4	3.8	10.0	9.0	24.0
ASC6-5	5.2	5.4	3.8	10.0	9.0	24.0
ASC6-6	6.5	5.4	3.8	12.0	9.0	24.0
ASC6-8	8.4	5.4	3.8	12.5	9.0	26.0
ASC6-10	10.5	6.0	4.0	15.0	9.0	28.0
ASC10-5	5.2	6.1	4.5	12.0	9.0	25.0
ASC10-6	6.5	6.1	4.5	12.0	9.0	25.0
ASC10-8	8.4	6.1	4.5	12.5	9.0	27.0
ASC10-10	10.5	6.1	4.5	15.0	9.0	29.0
ASC10-12	13.0	6.1	4.5	17.0	9.0	31.0
ASC16-5	5.2	7.0	5.4	12.0	12.0	30.0
ASC16-6	6.5	7.0	5.4	12.0	12.0	30.0
ASC16-8	8.4	7.0	5.4	12.5	12.0	30.0
ASC16-10	10.5	7.0	5.4	16.0	12.0	33.0
ASC16-12	13.0	7.0	5.4	17.0	12.0	35.0
ASC25-5	5.2	8.6	6.8	13.0	12.0	33.0
ASC25-6	6.5	8.6	6.8	13.0	12.0	33.0
ASC25-8	8.4	8.6	6.8	15.0	12.0	33.0
ASC25-10	10.5	8.6	6.8	18.0	12.0	34.0
ASC25-12	13.0	8.6	6.8	18.0	12.0	35.0
ASC25-14	15.0	8.6	6.8	20.0	12.0	38.0
ASC35-5	5.2	10.4	8.2	16.0	14.0	38.0
ASC35-6	6.5	10.4	8.2	16.0	14.0	38.0
ASC35-8	8.4	10.4	8.2	16.0	14.0	38.0
ASC35-10	10.5	10.4	8.2	18.0	14.0	39.0
ASC35-12	13.0	10.4	8.2	19.0	14.0	40.5
ASC35-14	15.0	10.4	8.2	20.0	14.0	42.0
ASC50-6	6.5	12.2	9.5	17.8	16.0	45.0
ASC50-8	8.4	12.2	9.5	17.8	16.0	45.0
ASC50-10	10.5	12.2	9.5	17.8	16.0	45.0
ASC50-12	13.0	12.2	9.5	20.0	16.0	45.0
ASC50-14	15.0	12.2	9.5	22.0	16.0	46.0
ASC50-16	17.0	12.2	9.5	24.0	16.0	47.0
ASC70-8	8.4	14.4	11.2	21.0	20.0	52.0
ASC70-10	10.5	14.4	11.2	21.0	20.0	52.0
ASC70-12	13.0	14.4	11.2	21.0	20.0	52.0
ASC70-14	15.0	14.4	11.2	21.0	20.0	52.0
ASC70-16	17.0	14.4	11.2	25.0	20.0	53.0
ASC95-8	8.4	17.1	13.5	25.0	23.0	58.0
ASC95-10	10.5	17.1	13.5	25.0	23.0	58.0
ASC95-12	13.0	17.1	13.5	25.0	23.0	58.0
ASC95-14	15.0	17.1	13.5	25.0	23.0	58.0
ASC95-16	17.0	17.1	13.5	25.0	23.0	58.0
ASC120-8	8.4	19.0	15.0	28.0	22.0	63.0
ASC120-10	10.5	19.0	15.0	28.0	22.0	63.0
ASC120-12	13.0	19.0	15.0	28.0	22.0	63.0
ASC120-14	15.0	19.0	15.0	28.0	22.0	63.0
ASC120-16	17.0	19.0	15.0	28.0	22.0	63.0
ASC120-20	21.0	19.0	15.0	28.0	22.0	63.0
ASC150-8	8.4	20.8	16.5	30.0	26.0	70.0
ASC150-10	10.5	20.8	16.5	30.0	26.0	70.0
ASC150-12	13.0	20.8	16.5	30.0	26.0	70.0
ASC150-14	15.0	20.8	16.5	30.0	26.0	70.0
ASC150-16	17.0	20.8	16.5	30.0	26.0	70.0
ASC150-20	21.0	20.8	16.5	30.0	26.0	70.0
ASC185-10	10.5	23.1	18.5	33.5	32.0	75.0
ASC185-12	13.0	23.1	18.5	33.5	32.0	75.0
ASC185-14	15.0	23.1	18.5	33.5	32.0	75.0
ASC185-16	17.0	23.1	18.5	33.5	32.0	75.0
ASC185-20	21.0	23.1	18.5	33.5	32.0	75.0
ASC240-10	10.5	26.0	21.0	38.0	38.0	90.0
ASC240-12	13.0	26.0	21.0	38.0	38.0	90.0
ASC240-14	15.0	26.0	21.0	38.0	38.0	90.0
ASC240-16	17.0	26.0	21.0	38.0	38.0	90.0
ASC240-20	21.0	26.0	21.0	38.0	38.0	90.0
ASC300-10	10.5	29.4	23.5	43.0	42.0	98.0
ASC300-12	13.0	29.4	23.5	43.0	42.0	98.0
ASC300-14	15.0	29.4	23.5	43.0	42.0	98.0
ASC300-16	17.0	29.4	23.5	43.0	42.0	98.0
ASC300-20	21.0	29.4	23.5	43.0	42.0	98.0
ASC400-10	10.5	35.8	28.5	52.0	44.0	110.0
ASC400-12	13.0	35.8	28.5	52.0	44.0	110.0
ASC400-14	15.0	35.8	28.5	52.0	44.0	110.0
ASC400-16	17.0	35.8	28.5	52.0	44.0	110.0
ASC400-20	21.0	35.8	28.5	52.0	44.0	110.0
ASC500-10	10.5	38.2	30.0	55.0	48.0	120.0
ASC500-12	13.0	38.2	30.0	55.0	48.0	120.0
ASC500-14	15.0	38.2	30.0	55.0	48.0	120.0
ASC500-16	17.0	38.2	30.0	55.0	48.0	120.0
ASC500-20	21.0	38.2	30.0	55.0	48.0	120.0
