RCCN>>Product>>Terminal>> RCCN CSC Copper Ture Terminals

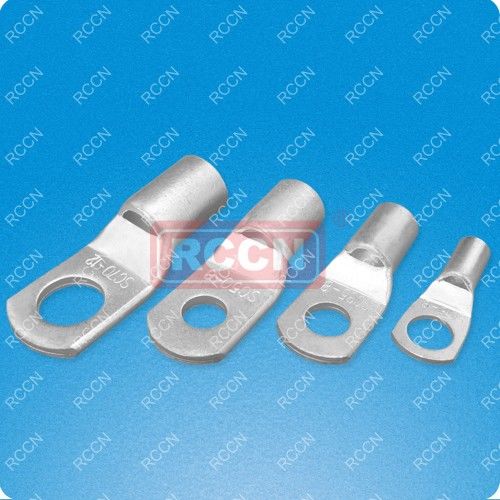

RCCN CSC Copper Ture Terminals

Use note:this series installed by tool of YYT.

Item No.	DIMENSION

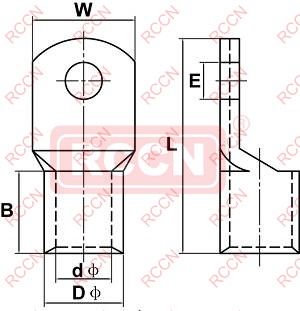

Item No.	E	DΦ	dΦ	W	B	L
CSC1.5-4	4.2	3.3	1.8	8.0	5.0	16.0
CSC1.5-5	5.2	3.3	1.8	10.0	5.0	17.0
CSC1.5-6	6.5	3.3	1.8	10.0	5.0	18.0
CSC2.5-4	4.2	3.6	2.4	8.0	7.0	18.0
CSC2.5-5	5.2	3.6	2.4	10.0	7.0	20.0
CSC2.5-6	6.5	3.6	2.4	10.0	7.0	20.0
CSC2.5-8	8.4	3.6	2.4	12.5	7.0	23.0
CSC4-4	4.2	4.4	3.1	10.0	7.0	20.0
CSC4-5	5.2	4.4	3.1	10.0	7.0	20.0
CSC4-6	6.5	4.4	3.1	10.0	7.0	20.0
CSC4-8	8.4	4.4	3.1	12.5	7.0	23.0
CSC6-4	4.2	5.1	3.8	10.0	9.0	23.0
CSC6-5	5.2	5.1	3.8	10.0	9.0	24.0
CSC6-6	6.5	5.1	3.8	12.0	9.0	24.0
CSC6-8	8.4	5.1	3.8	12.5	9.0	26.0
CSC6-10	10.5	5.9	4.0	15.0	9.0	28.0
CSC10-5	5.2	5.8	4.5	12.0	9.0	25.0
CSC10-6	6.5	5.8	4.5	12.0	9.0	25.0
CSC10-8	8.4	5.8	4.5	12.5	9.0	27.0
CSC10-10	10.5	5.8	4.5	15.0	9.0	29.0
CSC10-12	13.0	5.8	4.5	17.0	9.0	31.0
CSC16-5	5.2	6.6	5.4	12.0	12.0	30.0
CSC16-6	6.5	6.6	5.4	12.0	12.0	30.0
CSC16-8	8.4	6.6	5.4	12.5	12.0	30.0
CSC16-10	10.5	6.6	5.4	16.0	12.0	33.0
CSC16-12	13.0	6.6	5.4	17.0	12.0	35.0
CSC25-5	5.2	8.3	6.8	13.0	12.0	33.0
CSC25-6	6.5	8.3	6.8	13.0	12.0	33.0
CSC25-8	8.4	8.3	6.8	15.0	12.0	33.0
CSC25-10	10.5	8.3	6.8	18.0	12.0	34.0
CSC25-12	13.0	8.3	6.8	18.0	12.0	35.0
CSC25-14	15.0	8.3	6.8	20.0	12.0	38.0
CSC35-5	5.2	10.0	8.2	16.0	14.0	38.0
CSC35-6	6.5	10.0	8.2	16.0	14.0	38.0
CSC35-8	8.4	10.0	8.2	16.0	14.0	38.0
CSC35-10	10.5	10.0	8.2	18.0	14.0	39.0
CSC35-12	13.0	11.6	8.2	19.0	14.0	40.5
CSC35-14	15.0	11.6	8.2	20.0	14.0	42.0
CSC50-6	6.5	11.6	9.5	17.8	16.0	45.0
CSC50-8	8.4	11.6	9.5	17.8	16.0	45.0
CSC50-10	10.5	11.6	9.5	17.8	16.0	45.0
CSC50-12	13.0	11.6	9.5	20.0	16.0	45.0
CSC50-14	15.0	11.6	9.5	22.0	16.0	46.0
CSC50-16	17.0	11.6	9.5	24.0	16.0	47.0
CSC70-8	8.4	13.8	11.2	20.4	20.0	52.0
CSC70-10	10.5	13.8	11.2	20.4	20.0	52.0
CSC70-12	13.0	13.8	11.2	20.4	20.0	52.0
CSC70-14	15.0	13.8	11.2	20.4	20.0	52.0
CSC70-16	17.0	13.8	11.2	25.0	20.0	53.0
CSC95-8	8.4	16.4	13.5	24.0	23.0	58.0
CSC95-10	10.5	16.4	13.5	24.0	23.0	58.0
CSC95-12	13.0	16.4	13.5	24.0	23.0	58.0
CSC95-14	15.0	16.4	13.5	24.0	23.0	58.0
CSC95-16	17.0	16.4	13.5	24.0	23.0	58.0
CSC120-8	8.4	18.2	15.0	27.0	22.0	63.0
CSC120-10	10.5	18.2	15.0	27.0	22.0	63.0
CSC120-12	13.0	18.2	15.0	27.0	22.0	63.0
CSC120-14	15.0	18.2	15.0	27.0	22.0	63.0
CSC120-16	17.0	18.2	15.0	27.0	22.0	63.0
CSC120-20	21.0	18.2	15.0	27.0	22.0	63.0
CSC150-8	8.4	19.9	16.5	29.5	26.0	70.0
CSC150-10	10.5	19.9	16.5	29.5	26.0	70.0
CSC150-12	13.0	19.9	16.5	29.5	26.0	70.0
CSC150-14	15.0	19.9	16.5	29.5	26.0	70.0
CSC150-16	17.0	19.9	16.5	29.5	26.0	70.0
CSC150-20	21.0	19.9	16.5	29.5	26.0	70.0
CSC185-10	10.5	22.1	18.5	32.5	32.0	75.0
CSC185-12	13.0	22.1	18.5	32.5	32.0	75.0
CSC185-14	15.0	22.1	18.5	32.5	32.0	75.0
CSC185-16	17.0	22.1	18.5	32.5	32.0	75.0
CSC185-20	21.0	22.1	18.5	32.5	32.0	75.0
CSC240-10	10.5	25.5	21.0	37.0	38.0	90.0
CSC240-12	13.0	25.0	21.0	37.0	38.0	90.0
CSC240-14	15.0	25.0	21.0	37.0	38.0	90.0
CSC240-16	17.0	25.0	21.0	37.0	38.0	90.0
CSC240-20	21.0	25.0	21.0	37.0	38.0	90.0
CSC300-10	10.5	28.2	23.5	41.5	42.0	98.0
CSC300-12	13.0	28.2	23.5	41.5	42.0	98.0
CSC300-14	15.0	28.2	23.5	41.5	42.0	98.0
CSC300-16	17.0	28.2	23.5	43.0	42.0	98.0
CSC300-20	21.0	28.2	23.5	43.0	42.0	98.0
CSC400-10	10.5	34.3	28.5	50.5	44.0	110.0
CSC400-12	13.0	34.3	28.5	50.5	44.0	110.0
CSC400-14	15.0	34.3	28.5	50.5	44.0	110.0
CSC400-16	17.0	34.3	28.5	50.5	44.0	110.0
CSC400-20	21.0	34.3	28.5	50.5	44.0	110.0
CSC500-10	10.5	36.5	30.0	53.5	48.0	120.0
CSC500-12	13.0	36.5	30.0	53.5	48.0	120.0
CSC500-14	15.0	36.5	30.0	53.5	48.0	120.0
CSC500-16	17.0	36.5	30.0	53.5	48.0	120.0
CSC500-20	21.0	36.5	30.0	53.5	48.0	120.0

Note: the following data for the old code ( 2011 December update to the table above CSC code )

Item No.	Bolt hole diameter d2Φ（mm)	DIMENSION(mm)				Conductor cross section (mm²)
		dΦ	DΦ	L1	L
C 1.5 - 5	5.2	1.8	3.7	5	16	1.5
C 2.5 - 4	4.2	2.4	4.0	7	18	2.5
C 2.5 - 5	5.2				20
C 4 - 5	5.2	3.1	4.8	7	20	4
C 4 - 6	6.5
C 6 - 5	5.2	3.8	5.5	9	24	6
C 6 - 6	6.5
C 10 - 6	6.5	5	6.5	9	26	10
C 10 - 8	8.4
C 16 - 6	6.5	5.7	7.5	11	30	16
C 16 - 8	8.4
C 25 - 6	6.5	7.2	9	13	35	25
C 25 - 8	8.4
C 35 - 8	8.4	8.5	10.8	13.5	38	35
C 35 - 10	10.5
C 50 - 8	8.4	9.8	12.5	16	44	50
C 50 - 10	10.5
C 70 - 10	10.5	11.5	14.5	18	51	70
C 70 - 12	13.0
C 95 - 10	10.5	13.7	17	22	57	95
C 95 - 12	13.0
C 120 - 12	13	15	19	24	64	120
C 120 - 16	17
C 150 - 12	13	16.7	21	26	71	150
C 150 - 16	17
C 185 - 16	17	18.5	23	30	79	185
C 240 - 16	21	21	26	38	93	240
C 240 - 20	17
C 300 - 16	17	24.5	30	42	103	300
C 300 - 20	21
C 400 - 16	17	27	34	42	113	400
C 400 - 20	21
C 500 - 16	17	30	38	48	123	500
C 500 - 20	21
C 630 - 20	21	35	45	56	135	630
C 800 - BL	-	39	50	60	170	800
C 1000 - BL	-	44	56	87	200	1000
