RCCN DT Cable Lugs High Voltage
  |
|
Use note:this series installed by tool of YYT-70/YYT-120/YYT-240
|
| Item No. |

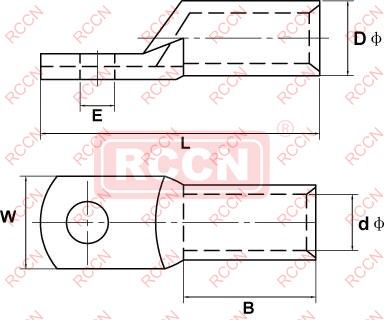

DIMENSION
|
|
E
|
DΦ |
dΦ |
W |
B |
L |
| DT10-6 |
6.4 |
7 |
5 |
12.4 |
17 |
36 |
| DT10-8 |
8.4 |
7 |
5 |
12.4 |
17 |
36 |
| DT16-6 |
6.4 |
9 |
6 |
14 |
32 |
58 |
| DT16-8 |
8.4 |
9 |
6 |
14 |
32 |
58 |
| DT25-6 |
6.4 |
10 |
7 |
15 |
32 |
58 |
| DT25-8 |
8.4 |
10 |
7 |
15 |
32 |
58 |
| DT25-10 |
10.5 |
10 |
7 |
17.5 |
32 |
58 |
| DT35-6 |
6.4 |
12 |
9 |
16 |
36 |
62 |
| DT35-8 |
8.4 |
12 |
9 |
16 |
36 |
62 |
| DT35-10 |
10.5 |
12 |
9 |
18 |
36 |
62 |
| DT50-8 |
8.4 |
14 |
10 |
20 |
40 |
72 |
| DT50-10 |
10.5 |
14 |
10 |
20 |
40 |
72 |
| DT70-8 |
8.4 |
16 |
12 |
23 |
42 |
76 |
| DT70-10 |
10.5 |
16 |
12 |
23 |
42 |
76 |
| DT70-12 |
13.0 |
16 |
12 |
23 |
42 |
76 |
| DT95-10 |
10.5 |
18 |
14 |
26 |
44 |
84 |
| DT95-12 |
13 |
18 |
14 |
26 |
44 |
84 |
| DT120-12 |
13 |
21 |
16 |
30 |
46 |
90 |
| DT120-16 |
17 |
21 |
16 |
30 |
46 |
90 |
| DT150-12 |
13 |
23 |
17 |
33 |
50 |
98 |
| DT150-16 |
17 |
23 |
17 |
33 |
50 |
98 |
| DT185-12 |
13 |
25 |
19 |
36 |
52 |
101 |
| DT185-16 |
17 |
25 |
19 |
36 |
52 |
101 |
| DT240-12 |
13 |
28 |
21.6 |
40 |
52 |
110 |
| DT240-16 |
17 |
28 |
21.6 |
40 |
52 |
112 |
| DT240-20 |
21 |
28 |
21.6 |
40 |
52 |
112 |
| DT300-16 |
17 |
31 |
24 |
45 |
58 |
116 |
| DT300-20 |
21 |
31 |
24 |
45 |
58 |
120 |
