RCCN>>Product>>Terminal>> RCCN V Vinyl Wire End Cap

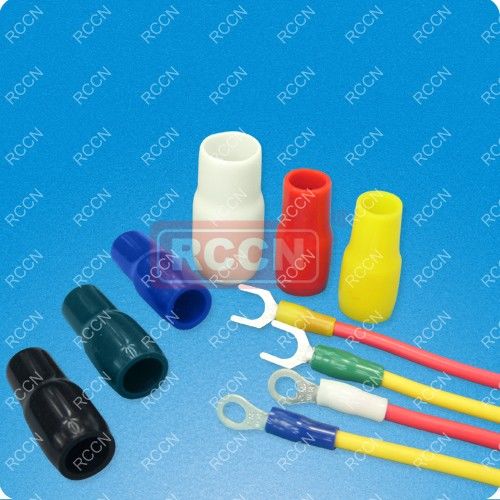

RCCN V Vinyl Wire End Cap

Material：high quality soft PVC
Used place：power supply equipments、machines，and so on
to clear the cables
Features：clear color,good flexible and insulation.
Order note：V-38red,means 38 square red tube.
Color：red，blue，white，black，yellow，green，brown.

Color：red，blue，white，black，yellow，green，brown.

Item No.	Suit ermina SQ	D1	D2	D3	L	F	B	T	Packing
	1.25	2.8	3.3	3.1	13±2.0	6±1.0	7±1.0	0.6^+0.3 ^-0.2	1000
V-2	2	3.3	4.5	3.7	14	9	7	0.7	1000
	3.5	4.2	5.7	4.1	17	9	8	0.8	1000
	5.5	4.8	5.7	5.2	17	10	8	0.8	1000
	8	6.2	7.2	6.2	19	14±1.2	9	1.0	1000
	14	7.5	10	8	25±2.4	15	11±1.2	11±0.3	100
V-22	22	10.5	12	9.5	30	17.5	15	1.2	100
	38	12.5	14	11.8	34	20	16.5	1.5	100
	60	15	16.8	13.5	39	25±1.5	19	1.5	100
	70	16	17.5	14.5	43	22	20	1.5	100
V-80	80	17	19	16	47±3.0	30	22±1.5	16±0.4	100
	100	19	22	18	54	30	24	1.7	50
	125	21	24	20	57	32	25	1.8	50
	150	23	24.5	22	65	35	30	2.0	25
V-200	200	27	32	24	65	35	30	2.0	20
V-250	250	29	38	26.5	77±4.0	35±2.0	42±2.0	2.5±0.6	20
	325	29	38	29	77	37	40	2.5	20
	400	42	45	36	85	46	41	2.5	10
	500	46	48	40	88	41	42	2.5	10
	630	52	54	44	92	50	47	2.5	10
