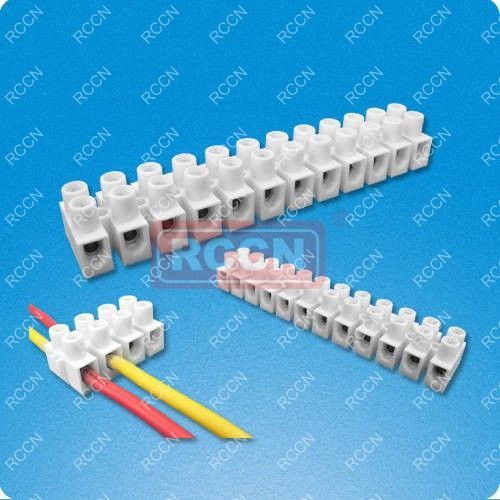

RCCN PAV0 V0 Terminal Blocks

RCCN PAV0 V0 Terminal Blocks



RCCN PAV0 V0 Terminal Blocks

RCCN PAV0 V0 Terminal Blocks RCCN PAV0 V0 Terminal Blocks
Material: UL approved NYLON66(natural)，fireproof 94V-0，nickel coated copper bottom，zinc coated steel screw,Operate T.:-30℃-110℃。
Page number:B57

AWG&mm2
(square data)
refered sheet		 AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03

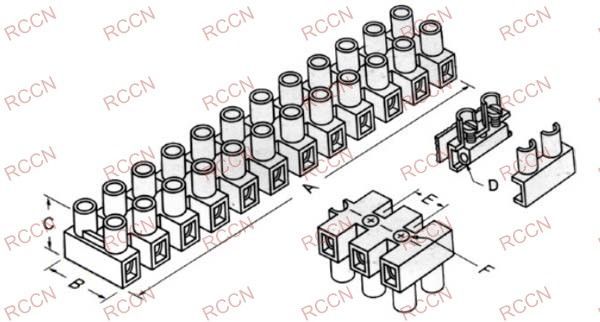

Item No.

Dimension

Cable
range
mm2

Max.
current
A

Suitable
volage
V

Screw

Spl it
cable
ength

Packing
A B C D E F
smooth bottom 50PCS
PA-1.5V0 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A

450V

 M2.6*5 5
PA-2.5V0 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
smooth bottom with shrapnel
PA-1.5DSV0 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5DSV0 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
higher bottom
PA-1.5HV0 96.2 17 14.5 2.8 8 2.9 1.5 17.5 450V M2.6*5 5 50PCS
PA-2.5HV0 116.5 20.2 16.8 3.4 10 3.6 2.5 24 450V M3*6 6.5
PA-6HV0 141 23.8 19 4.2 12 3.9 6 41 500V M3.5*7 7
PA-10HV0 158 25.6 25.2 5 13.5 4.4 10 57 500V M4*9 9
PA-16HV0 170 28.1 23 6 14.5 4.2 16 76 500V M4*9 9 10PCS
PA-25HV0 194 37 28.7 7.5 16.5 4.2 25 101 500V M4*11 11
higher bottom with shrapnel
PA-1.5HDSV0 96.2 17 14.5 2.8 8 2.9 1.5 17.5A 450V M2.6*5 5 50PCS
PA-2.5HDSV0 116.2 20.2 16.8 3.4 10 3.6 2.5 24A 450V M3*6 6.5
PA-6HDSV0 141 23.8 19 4.2 12 3.9 6 41A 500V M3.5*7 7
PA-10HDSV0 158 25.6 25.2 5 13.5 4.4 10 57A 500V M4*9 9
