RCCN SWY Screw On Wire Connector
  |
| Material:high temperature resistant plastic,with spring inside, temperature withstand up to 150°C,UL94V-0 fireproof. Page number:B55 |
| AWG&mm2 (square data) refered sheet |
AWG | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| mm2 | 33.4 | 20.8 | 13.2 | 8.4 | 5.3 | 3.3 | 2.1 | 1.3 | 0.83 | 0.52 | 0.33 | 0.21 | 0.13 | 0.08 | 0.05 | 0.03 |
|

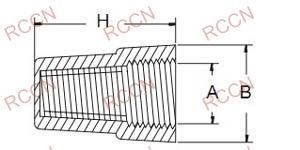

Item No. |
A |
B |
H |
SuitableWires |
Color |
Packing |
||
| SW-Y71 | 10 | 18 | 25.4 | 18-10AWG | Yellow | 100ppcs | ||
| SW-Y71 | 10 | 17.8 | 27.7 | 22-8AWG | Brown | |||
| SW-Y73 | 12 | 23.1 | 30.5 | 18-AWG | Red | |||
| SW-Y74 | 14.6 | 25.5 | 32.6 | 18-8AWG | Gray | |||
| SW-Y76 | 17.8 | 31.7 | 39.5 | 14-6AWG | Gray | |||
