Product Information:
RCCN METAL FLEXIBLE CONDUIT FITTINGS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP 40 to IP 66 acc. to EN 60529 in combination with the corresponding

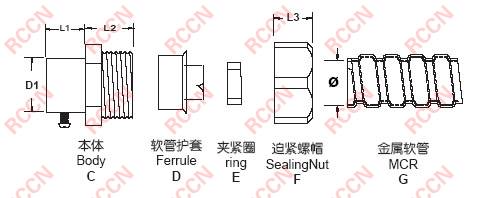

protective conduit - 40?? C up to + 125?? C with sealing made of thermo plastic elastomer - 60?? C up to + 300?? C with PTFE seal - 40?? C up to + 250?? C with brass thrust collar, Material Connector body Nickel-plated brass Hexagonal pressure nut Nickel-plated brass Sealing ring Thermoplastic elastomer or PTFE Ferrule Polished or nickel-plated brass (depending on type of conduit) Ferrule Plastic O-ring NBR |
| ??? Item No. |
?????????????MCR | ????(?.ú.????) | ?????(?????) | ||||||||
| ?????? | ???? | ??? | ???? | ??? | ?? | ??? | ???? | ??? | ?? | ??? | |
| NBE-04G | MCR-04 | 13 | 3/8" | #12 | 3/8" | 17.00 | 2.25 | 15 | 5/8" | 15.87 | 1.6 |
| NBE-05G | MCR-05 | 16 | 1/2" | #15 | 1/2" | 21.25 | 2.75 | 20 | 3/4" | 19.05 | 1.8 |
| NBE-06G | MCR-06 | 20 | 3/4" | #20 | 3/4" | 26.75 | 2.75 | 25 | 3/4" | 25.40 | 1.8 |
| NBE-08G | MCR-08 | 25 | 1" | #25 | 1" | 33.50 | 3.25 | 32 | 3/4" | 31.75 | 1.8 |
| NBE-10G | MCR-10 | 32 | 1 1/4" | #32 | 1 1/4" | 42.25 | 3.25 | 40 | 1 1/2 | 38.10 | 1.8 |
| NBE-12G | MCR-12 | 38 | 1 1/2" | #40 | 1 1/2 | 48.00 | 3.50 | 50 | 2" | 50.80 | 2.0 |
| NBE-16G | MCR-16 | 51 | 2" | #50 | 2" | 60.00 | 3.50 | 70 | 2 1/2" | 63.50 | 2.5 |
| NBE-20G | MCR-20 | 64 | 2 1/2" | #70 | 2 1/2" | 75.50 | 3.75 | 80 | 3" | 76.20 | 3.2 |
| NBE-24G | MCR-24 | 80 | 3" | #80 | 3" | 88.50 | 4.00 | ||||
| NBE-32G | MCR-32 | 100 | 4" | #100 | 4" | 114.0 | 4.00 | ||||
