日成PC板隔離柱-CBS型
  |
|
材 質：UL合格之NYLON66(本色)，防火等級94V-2，絕緣性佳，不易老化 目錄頁碼：B97 |
| 型號Item No. | 孔徑 Hole dia. |
板厚 Board thickness |
間距 Instance A |
包裝 Packing |
|

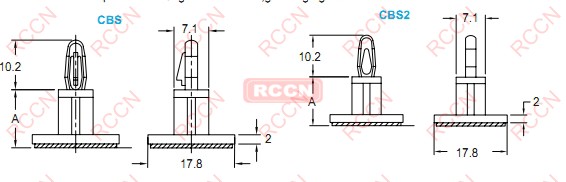

| CBS | CBS2 | ||||
| CBS-4.8 | CBS2-4.8 | 4.0 | 1.6 | 4.8 | 1000pcs |
| CBS-6.4 | CBS2-6.4 | 4.0 | 1.6 | 6.4 | |
| CBS-9.5 | CBS2-9.5 | 4.0 | 1.6 | 9.5 | |
| CBS-12.7 | CBS2-12.7 | 4.0 | 1.6 | 12.7 | |
| CBS-15.9 | CBS2-15.9 | 4.0 | 1.6 | 15.9 | |
| CBS-19.1 | CBS2-19.1 | 4.0 | 1.6 | 19.1 | |
| CBS-22.2 | CBS2-22.2 | 4.0 | 1.6 | 22.2 | |
| CBS-25.4 | CBS2-25.4 | 4.0 | 1.6 | 25.4 | |
| CBS-28.6 | CBS2-28.6 | 4.0 | 1.6 | 28.6 | |
| 型號Item No. | 孔徑 Hole dia. |
板厚 Board thickness |
間距 Instance A |
包裝 Packing |

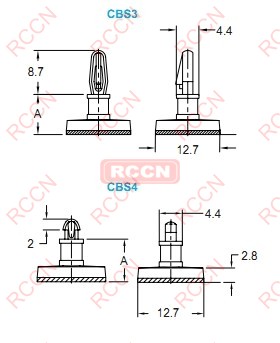

| CBS3-4.8 | 3.2 | 1.6 | 4.8 | 1000pcs |
| CBS3-6.4 | 3.2 | 1.6 | 6.4 | |
| CBS3-9.5 | 3.2 | 1.6 | 9.5 | |
| CBS3-11.1 | 3.2 | 1.6 | 11.1 | |
| CBS3-12.7 | 3.2 | 1.6 | 12.7 | |
| CBS3-15.9 | 3.2 | 1.6 | 15.9 | |
| CBS4-4.8 | 3.2 | 1.6 | 4.8 | |
| CBS4-6.4 | 3.2 | 1.6 | 6.4 | |
| CBS4-9.5 | 3.2 | 1.6 | 9.5 | |
| CBS4-11.1 | 3.2 | 1.6 | 11.1 | |
| CBS4-12.7 | 3.2 | 1.6 | 12.7 | |
| CBS4-15.9 | 3.2 | 1.6 | 15.9 |
