RCCN MF Insulated Peggy Back Terminals

RCCN MF Insulated Peggy Back Terminals


RCCN MF Insulated Peggy Back Terminals





RCCN MF Insulated Peggy Back Terminals RCCN MF Insulated Peggy Back Terminals

Note:installed by crimp tool YYT-1



 Insulated square：0.5～1.5mm2(AWG22～16) Max. cunrrent：lmax＝10A color:red

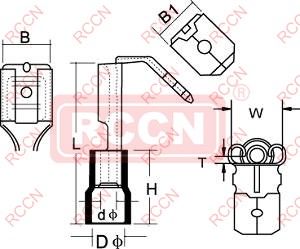

Item No. NEMA-TAB   DIMENSION
T*W B B1 H Dφ dφ L Red
mm mm mm mm mm mm mm
0.8×6.35 7.4 6.3 10.0 3.8 1.7 21.5


 Insulated square：1.5～2.5mm2(AWG16～14) Max. cunrrent：lmax＝15A color:blue

Item No. NEMA-TAB   DIMENSION
T*W B B1 H Dφ dφ L Bule
mm mm mm mm mm mm mm
0.8×6.35 7.4 6.3 10.0 4.3 2.3 21.5


 Insulated square：4～6mm2(AWG12～10) Max. cunrrent：lmax＝24A color:yellow

Item No. NEMA-TAB  DIMENSION
T*W B B1 H Dφ dφ L Yellow
mm mm mm mm mm mm mm
0.8×6.35 7.4 6.3 13.0 5.7 3.4 25.0



RCCN MF Insulated Peggy Back Terminals
