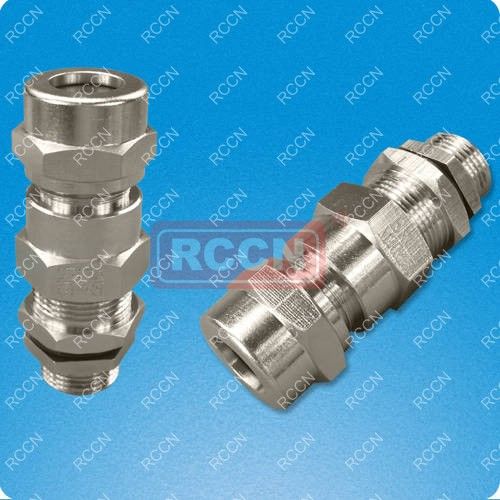

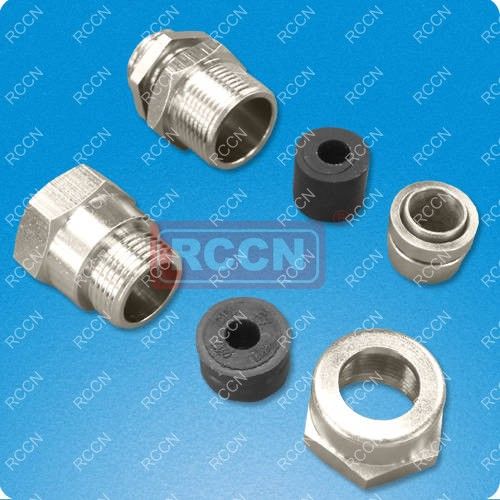

RCCN EX Brass Cable Gland
  |
| Thread:Metric),G Material:body is made of copper coated nickel,seal is made of NBR Certificates:CE,EX Operate temperature:-40°C to 100°C Protect:IP65。 Features:used in dangerouse location，fix un-armour cables,explosion-proof equipment，oil projects |
|
Item No |
Thread Length L1 |
Outer |
Outer |
Tape |
+Nut Max |
Joint Length H |
Spanne SW |
Std.Pkg |
|
Thread length M
|
||||||||
| EX-M16×1.5-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
50PCS |
| EX-M16×1.5-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-M20×1.5-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-M20×1.5-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-M20×1.5-21 |
16
|
7-14
|
15.5-21 | ≤0.50 | ≤10.5 |
58
|
30
|
25PCS |
| EX-M25×1.5-28 |
16
|
13-20 | 20-28 | ≤0.50 | ≤10.5 |
58
|
36
|
|
| EX-M32×1.5-34 |
16
|
19-26 | 26-34 | ≤0.55 | ≤10.5 |
65
|
44
|
|
| EX-M40×1.5-41 |
16
|
25-32 | 33-41 | ≤0.80 | ≤10.5 |
72
|
54
|
1PCS |
| EX-M50×1.5-46 |
16
|
32-38 | 39-46 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-M50×1.5-53 |
16
|
36-44 | 45-53 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-M63×1.5-60 |
19
|
42-50 | 52-60 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-M63×1.5-66 |
19
|
50-56 | 58-66 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-M75×1.5-66 |
19
|
54-62 | 64-72 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-M75×1.5-78 |
19
|
60-68 | 71-78 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-M80×2.0-84 |
19
|
62-72 | 77-84 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-M80×2.0-90 |
19
|
70-80 | 80-90 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-M85×2.0-90 |
19
|
70-80 | 80-90 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-M90×2.0-96 |
19
|
74-84 | 88-96 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-M90×2.0-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-M100 2.0-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|
|
Germany thread PG
|
||||||||
| EX-PG9-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
100PCS |
| EX-PG9-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-PG13.5-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-PG13.5-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-PG13.5-21 |
16
|
7-14
|
15.5-21 | ≤0.50 | ≤10.5 |
58
|
30
|
25PCS |
| EX-PG21-28 |
16
|
13-20 | 20-28 | ≤0.50 | ≤10.5 |
58
|
36
|
|
| EX-PG29-34 |
16
|
19-26 | 26-34 | ≤0.55 | ≤10.5 |
65
|
44
|
|
| EX-PG36-41 |
16
|
25-32 | 33-41 | ≤0.80 | ≤10.5 |
72
|
54
|
1PCS |
| EX-PG42-46 |
16
|
32-38 | 39-46 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-PG42-53 |
16
|
36-44 | 45-53 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-PG48-60 |
19
|
42-50 | 52-60 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-PG48-66 |
19
|
50-56 | 58-66 | ≤0.80 | ≤13.5 |
76
|
81
|
|
|
America thread NPT
|
||||||||
| EX-NPT1/2-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
50PCS |
| EX-NPT1/2-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-NPT1/2-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-NPT1/2-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-NPT1/2-21 |
16
|
7-14
|
15.5-21 | ≤0.50 | ≤10.5 |
58
|
30
|
25PCS |
| EX-NPT3/4-28 |
16
|
13-20 | 20-28 | ≤0.50 | ≤10.5 |
58
|
36
|
|
| EX-NPT1-34 |
16
|
19-26 | 26-34 | ≤0.55 | ≤10.5 |
65
|
44
|
|
| EX-NPT1-1/4-41 |
16
|
25-32 | 33-41 | ≤0.80 | ≤10.5 |
72
|
54
|
1PCS |
| EX-NPT1-1/2-46 |
16
|
32-38 | 39-46 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-NPT1-1/2-53 |
16
|
36-44 | 45-53 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-NPT2-60 |
19
|
42-50 | 52-60 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-NPT2-66 |
19
|
50-56 | 58-66 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-NPT2-1/2-66 |
19
|
54-62 | 64-72 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-NPT2-1/2-78 |
19
|
60-68 | 71-78 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-NPT3-96 |
19
|
74-84 | 88-96 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-NPT3-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-NPT3-1/2-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|
|
English thread G
|
||||||||
| EX-G1/2-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
50PCS |
| EX-G1/2-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-G1/2-13 |
16
|
4-8.5 | 8.5-13.5 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-G1/2-16 |
16
|
8-11.5 | 11.5-16 | ≤0.35 | ≤10.5 |
58
|
24
|
|
| EX-G1/2-21 |
16
|
7-14
|
15.5-21 | ≤0.50 | ≤10.5 |
58
|
30
|
25PCS |
| EX-G3/4-28 |
16
|
13-20 | 20-28 | ≤0.50 | ≤10.5 |
58
|
36
|
|
| EX-G1-34 |
16
|
19-26 | 26-34 | ≤0.55 | ≤10.5 |
65
|
44
|
|
| EX-G1-1/4-41 |
16
|
25-32 | 33-41 | ≤0.80 | ≤10.5 |
72
|
54
|
1PCS |
| EX-G1-1/2-46 |
16
|
32-38 | 39-46 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-G1-1/2-53 |
16
|
36-44 | 45-53 | ≤0.80 | ≤10.5 |
73
|
64
|
|
| EX-G2-60 |
19
|
42-50 | 52-60 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-G2-66 |
19
|
50-56 | 58-66 | ≤0.80 | ≤13.5 |
76
|
81
|
|
| EX-G2-1/2-66 |
19
|
54-62 | 64-72 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-G2-1/2-78 |
19
|
60-68 | 71-78 | ≤1.00 | ≤13.5 |
82
|
96
|
|
| EX-G3-96 |
19
|
74-84 | 88-96 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-G3-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|
| EX-G3-1/2-100 |
19
|
80-90 | 90-100 | ≤1.00 | ≤13.5 |
110
|
110
|
|

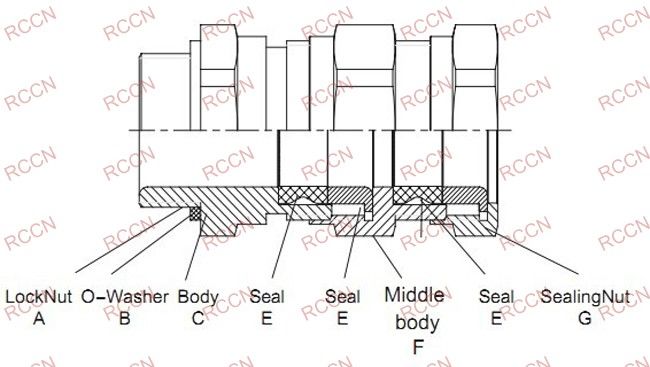

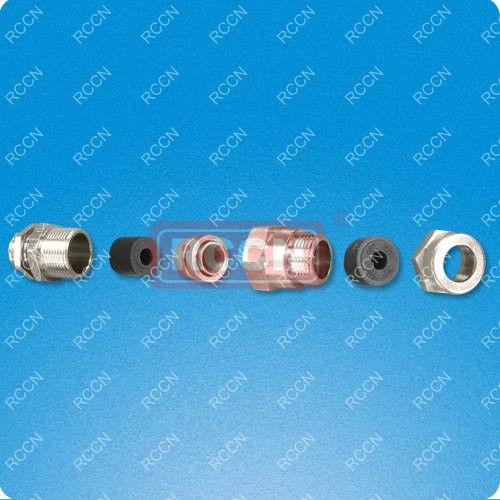

分解圖
