RCCN>>Product>>Cable Gland>> RCCN PG Nylon Cable Gland

RCCN PG Nylon Cable Gland

Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can wihtstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey

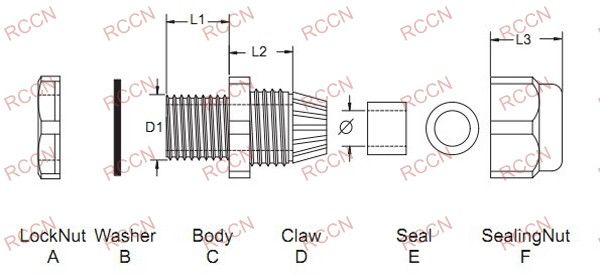

Item No.		Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F	Std.Pkg. pcs
White	Black	Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F	Std.Pkg. pcs
Short thread
		PG7	3-6.5	12.5	12.5-12.8	8	18/16	100PCS
		PG9	4-8	15.2	15.2-15.8	8	22/19
		PG11	5-10	18.6	18.6-18.9	8	24/22
		PG13.5	6-12	20.4	20.4-20.7	9	27/24
		PG16	10-14	22.5	22.5-22.8	10	30/27
		PG19	12-15	24.1	24.1-24.5	10	30/27
		PG21	13-18	28.3	28.3-28.7	10	36/33
		PG25	16-21	30.1	30.1-30.3	11	37/36
		PG29	18-25	37.0	37.0-37.4	12	46/42
		PG-36	22-32	47.0	47.0-47.4	14	59/54
		PG42	32-38	54.0	54.0-54.4	14	64/61	20PCS
		PG-48	37-44	59.3	59.3-59.7	14	69/65
		PG63	42-50	59.3	70.3-70.7	27	75/72
Long thread
		PG7	3-6.5	12.5	12.5-12.8	15	18/16	100PCS
		PG9	4-8	15.2	15.2-15.8	15	22/19
		PG11	5-10	18.6	18.6-18.9	15	24/22
		PG13.5	6-12	20.4	20.4-20.7	15	27/24
		PG16	10-14	22.5	22.5-22.8	15	30/27
		PG21	13-18	28.3	28.3-28.7	15	36/33
	PG-29LB	PG29	18-25	37.0	37.0-37.4	18	46/42
		PG-36	22-32	47.0	47.0-47.4	18	59/54	20PCS
		PG42	32-38	54.0	54.0-54.4	18	64/61
		PG-48	37-44	59.3	59.3-59.7	18	69/65
