RCCN>>Product>>Cable Gland>> RCCN MS Stainless Steel Cable Gland

RCCN MS Stainless Steel Cable Gland

Thread:Metric

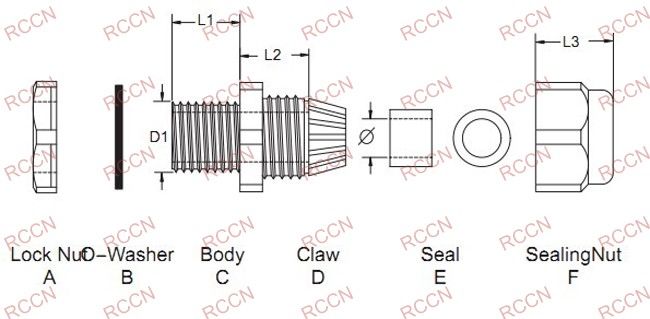

Material:A.C.F are made of stainess steel.D is made of insulated plastic .B.E are made of NBR
Certificates:CE,EX
Protection:IP67。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
Length added is available, such as ：MS20×1.5/L=15
Notes:lock nut is sold separatedly,O-ring is included

Item No	Thread	Cable Range Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	JointLength L2+L3	Spanner size A&F	Std.Pkg Pcs
MS12*1.5	M12*1.5	3-6	12	12-12.3	6	19	16	100PCS
MS14*1.5	M14*1.5	3-6	14	14-14.3	6	19	16
MS16*1.5	M16*1.5	4-8	16	16-16.3	7	20	18
MS18*1.5	M18*1.5	6-10	18	18-18.3	8	22	20
MS20*1.5	M20*1.5	8-12	20	20-20.3	8	23	22
MS22*1.5	M22*1.5	10-14	22	22-22.3	9	23	24
MS24*1.5	M24*1.5	10-14	24	24-24.3	10	23	27	50PCS
MS25*1.5	M25*1.5	10-14	25	25-25.4	10	23	28
MS27*2.0	M27*2.0	13-18	27	27-27.4	11	28	30
MS30*2.0	M30*2.0	13-18	30	30-30.4	11	28	32
MS32*1.5	M32*1.5	15-22	32	32-32.4	11	32	36
MS33*2.0	M33*2.0	15-22	33	33-33.4	11	32	36
MS36*2.0	M36*2.0	18-25	36	36-36.4	11	32	42
MS40*1.5	M40*1.5	18-25	40	40-40.4	12	32	45	10PCS
MS42*2.0	M42*2.0	22-28	42	42-42.4	12	36	48
MS48*2.0	M48*2.0	25-32	48	48-48.4	13	38	52
MS50*1.5	M50*1.5	26-32	50	50-50.4	13	38	56	5PCS
MS54*2.0	M54*2.0	32-38	54	54-54.4	14	38	60
MS60*2.0	M60*2.0	37-44	60	60-60.4	14	38	64
MS63*1.5	M63*1.5	37-44	63	63-63.4	14	38	70
