Region > China Richeng > ProDUCT > CABLE GLAND > Brass Cable Gland

Product Information:

RCCN Brass Cable Gland

PERFECT Cable Gland
with metric connecting thread as per EN 60423,
brass, nickel electroplated, polyamide PA 6 lamellar
insert, neoprene (CR)-sealing ring,
Buna N (NBR)-O-ring at the connecting thread,
outstanding strain relief, water-tight,
large clamping range, easy-to-install,
temperature range -20??C to +100??C
protection grade IP 68 - 5 bar

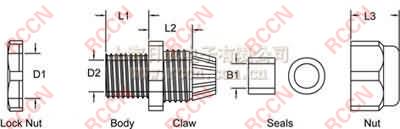

Item No.	Thread	CableRange ??	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg. pcs
M12??1.5	M12??1.5	3-6	12	12-12.3	6	19	16	100PCS
M16??1.5	M16??1.5	4-8	16	16-16.3	7	20	18
M20??1.5	M20??1.5	8-12	20	20-20.3	8	23	22
M25??1.5	M25??1.5	10-14	25	25-25.4	10	23	28	50PCS
M32??1.5	M32??1.5	15-22	32	32-32.4	11	32	36	50PCS
M40??1.5	M40??1.5	18-25	40	40-40.4	12	32	42	10PCS
M50??1.5	M50??1.5	26-32	50	50-50.4	13	38	56
M63??1.5	M63??1.5	37-44	63	63-63.4	14	38	70
M72??2.0	M72??2.0	42-52	72	72-72.4	15	38	75	5PCS
M88??2.0	M88??2.0	55-62	88	88-88.4	20	45	80
M100??2.0	M100??2.0	78-84	100	102	20	50	90

Item No.	Thread	CableRange ??	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg. pcs
M12??1.5	M12??1.5	3-6	12	12-12.3	6	19	16	100PCS
M14??1.5	M14??1.5	3-6	14	14-14.3	6	19	16
M16??1.5	M16??1.5	4-8	16	16-16.3	7	20	18
M18??1.5	M18??1.5	6-10	18	18-18.3	8	22	20
M20??1.5	M20??1.5	8-12	20	20-20.3	8	23	22
M22??1.5	M22??1.5	10-14	22	22-22.3	9	23	24
M24??1.5	M24??1.5	10-14	24	24-24.3	10	23	27	50PCS
M25??1.5	M25??1.5	10-14	25	25-25.4	10	23	28
M27??2.0	M27??2.0	13-18	27	27-27.4	11	28	30
M30??2.0	M30??2.0	13-18	30	30-30.4	11	28	32
M32??1.5	M32??1.5	15-22	32	32-32.4	11	32	36
M33??2.0	M33??2.0	15-22	33	33-33.4	11	32	36
M36??2.0	M36??2.0	18-25	36	36-36.4	11	32	42
M40??1.5	M40??1.5	18-25	40	40-40.4	12	32	42	10PCS
M42??2.0	M42??2.0	22-28	42	42-42.4	12	36	48
M48??2.0	M48??2.0	25-32	48	48-48.4	13	38	52
M50??1.5	M50??1.5	26-32	50	50-50.4	13	38	56	5PCS
M54??2.0	M54??2.0	32-38	54	54-54.4	14	38	60
M60??2.0	M60??2.0	37-44	60	60-60.4	14	38	64
M63??1.5	M63??1.5	37-44	63	63-63.4	14	38	70
M64??2.0	M64??2.0	37-44	64	64-64.4	14	38	70
M72??2.0	M72??2.0	42-52	72	72-72.4	15	38	75
M80??2.0	M80??2.0	55-60	80	80-80.4	20	45	80
M88??2.0	M88??2.0	55-62	88	88-88.4	20	45	80
M100??2.0	M100??2.0	78-84	100	102	20	50	90
