RCCN ??????????????

METAL FLEXIBLE CONDUIT FITTINGS

???????:??????G
???????:C.F??λ??????????????п??????.E?????????(NBR)???.D??????????.
??????:???CE:C4M20412-4120-E-16 ??????RoHS:SH549670
???????:?????(?????)
???????:-40?C??100?C,?????????120?C.
???????: 1.?????????????????????????????????????????.
2.?????±???????,????????????????С????????.
?? ?:F??????????(female thread).???????ST????????????(Stainless Steel)??NBF-06GST

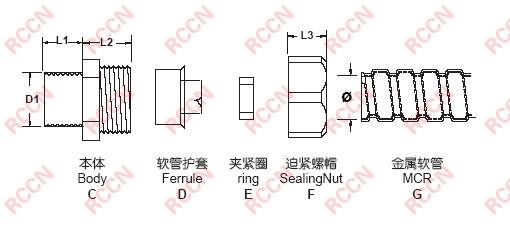

??λ : mm

??? Item No.	??????? Thread G/M/PG	?????????????MCR			?????? Thread O.D. D1	??????? Thread Length L1	?????? Joint Length L2+L3	??? Packing pcs
??? Item No.	??????? Thread G/M/PG	??????	????	???	?????? Thread O.D. D1	??????? Thread Length L1	?????? Joint Length L2+L3	??? Packing pcs
NBF-04G	G3/8"	MCR-04	13	3/8"	16.5	8	18	100
NBF-05G	G1/2"	MCR-05	16	1/2"	21.3	11	23	100
NBF-06G	G3/4"	MCR-06	20	3/4"	26.6	14	22	50
NBF-08G	G1"	MCR-08	25	1"	33.4	15	28	50
NBF-10G	G1 1/4"	MCR-10	32	1 1/4"	42.1	15	30	25
NBF-12G	G1 1/2"	MCR-12	38	1 1/2"	47.8	16	32	25
NBF-16G	G2"	MCR-16	51	2"	59.6	18	34	10
NBF-20G	G2 1/2"	MCR-20	64	2 1/2"	75.1	22	38	10
NBF-24G	G3"	MCR-24	80	3"	87.8	22	46	5
NBF-32G	G4"	MCR-32	100	4"	113	24	50	5

??????
