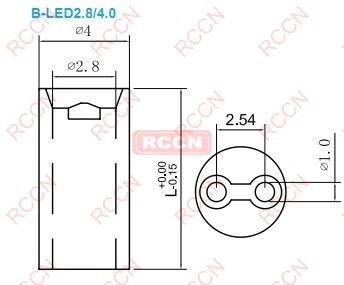

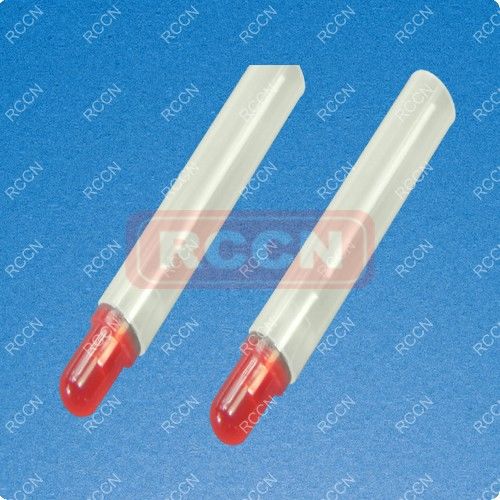

日成內雙圓孔B-LED隔離柱
  |
|
材 質:UL合格之NYLON66（本色）。 目錄頁碼:B107 |
| 單位/Unit:mm
|
|||
| 型號/ Item No. 內徑/外徑/高度 Inner dia./Outer dia./Height |
型號/ Item No. 內徑/外徑/高度 Inner dia./Outer dia./Height |
型號/ Item No. 內徑/外徑/高度 Inner dia./Outer dia./Height |
型號/ Item No. 內徑/外徑/高度 Inner dia./Outer dia./Height |
| B-LED2.8/4.0-1.5 | B-LED2.8/4.0-6.5 | B-LED2.8/4.0-11.0 | B-LED2.8/4.0-16.0 |
| B-LED2.8/4.0-2.0 | B-LED2.8/4.0-7.0 | B-LED2.8/4.0-11.5 | B-LED2.8/4.0-16.5 |
| B-LED2.8/4.0-2.5 | B-LED2.8/4.0-7.5 | B-LED2.8/4.0-12.0 | B-LED2.8/4.0-17.0 |
| B-LED2.8/4.0-3.0 | B-LED2.8/4.0-8.0 | B-LED2.8/4.0-12.5 | B-LED2.8/4.0-17.5 |
| B-LED2.8/4.0-3.5 | B-LED2.8/4.0-8.5 | B-LED2.8/4.0-13.0 | B-LED2.8/4.0-18.0 |
| B-LED2.8/4.0-4.0 | B-LED2.8/4.0-9.0 | B-LED2.8/4.0-13.5 | B-LED2.8/4.0-18.5 |
| B-LED2.8/4.0-4.5 | B-LED2.8/4.0-9.5 | B-LED2.8/4.0-14.0 | B-LED2.8/4.0-19.0 |
| B-LED2.8/4.0-5.0 | B-LED2.8/4.0-10.0 | B-LED2.8/4.0-14.5 | B-LED2.8/4.0-19.5 |
| B-LED2.8/4.0-5.5 | B-LED2.8/4.0-10.5 | B-LED2.8/4.0-15.0 | B-LED2.8/4.0-20.0 |
| B-LED2.8/4.0-6.0 | B-LED2.8/4.0-11.0 | B-LED2.8/4.0-15.5 | B-LED2.8/4.0-20.5 |
| -- | -- | -- | B-LED2.8/4.0-21.0 |
| -- | -- | -- | B-LED2.8/4.0-21.5 |
| -- | -- | -- | B-LED2.8/4.0-22.0 |
