日成RH型圓型夾線套1
  |
|
材質：UL合格之NYLON66(本色), |
|
|
|
|||

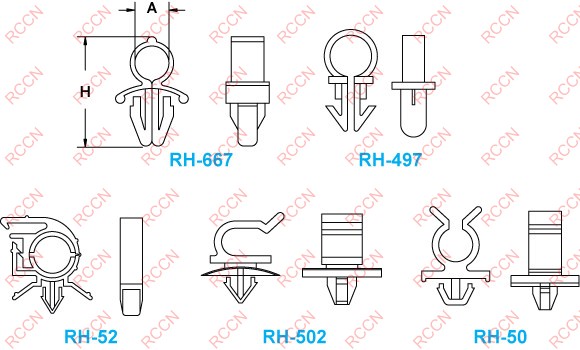

| A | H | 基板開孔 Panel hole |
適用板厚 Suitable panel thickness |
(1000pcs) |
|
|

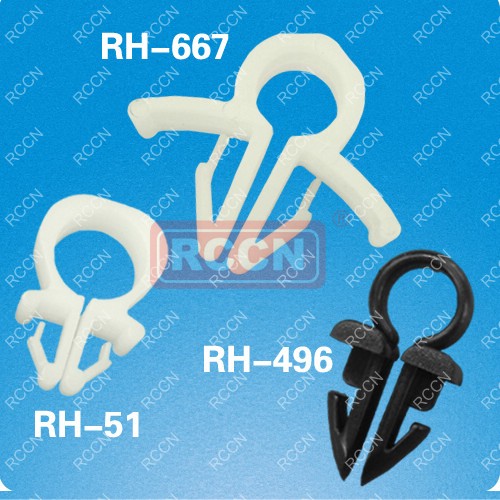

RH-51
|
8.8 | 19 | 6.0 | 3.0-3.3 | |
|
RH-496
|
6.3 | 21.6 | 6.5 | 1.2-4.4 | |

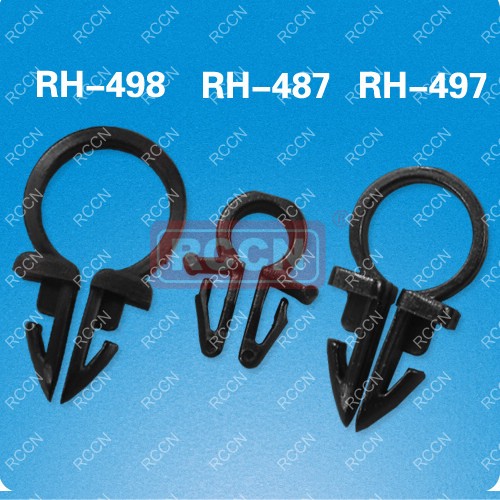

| RH-497 | 9.5 | 24 | 6.2 | 1.3-5.0 | |
| RH-498 | 12.7 | 27.0 | 5.5 | 1.2-4.2 | |
| RH-487 | 5.0 | 15.2 | 5.0 | 2.5 | |
| RH-667 | 6.0 | 17.5 | 7.0 | 4.0 | |
|
|
|
|||
| A | H | 基板開孔 Panel hole |
適用板厚 Suitable panel thickness |
(1000pcs) |
|
|

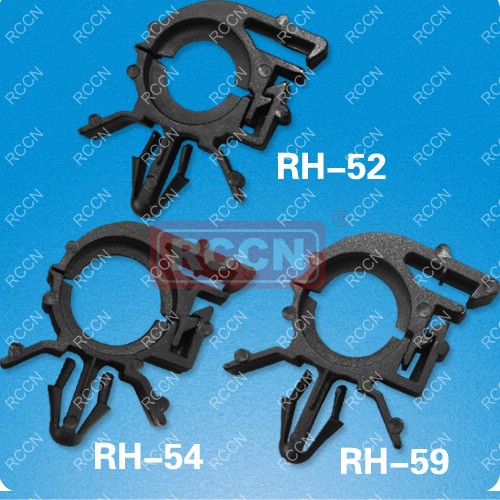

RH-52
|
14.0 | 36.0 | 7.0 | 5.0 | |
|

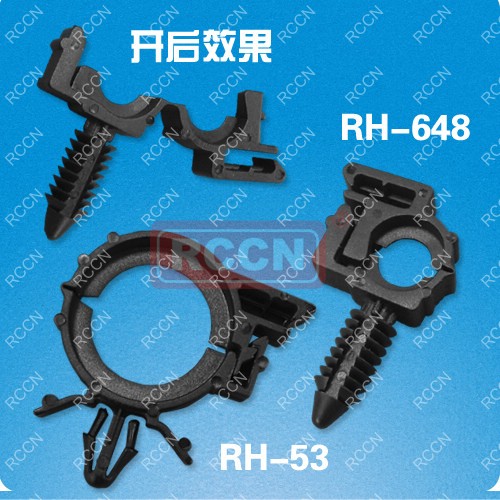

RH-53
|
20.0 | 44.0 | 6.5 | 4.5 | |
| RH-54 | 12.0 | 35.0 | 7.5 | 4.5 | |
| RH-59 | 10.0 | 34.0 | 7.0 | 5.0 | |
| RH-648 | 7.5 | 40.0 | 7.0 | 4-10 | |
|
|
|
|||
| A | H | 基板開孔 Panel hole |
適用板厚 Suitable panel thickness |
(1000pcs) |
|
|

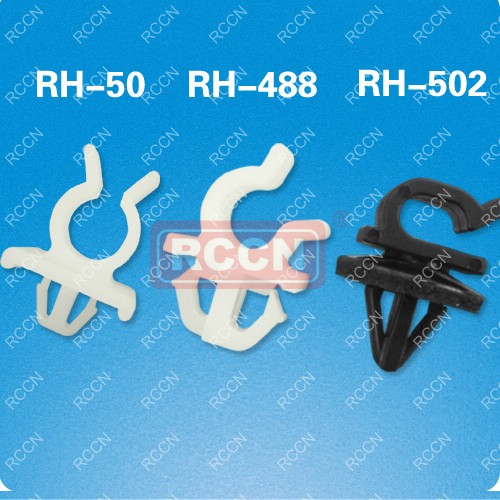

RH-50
|
14.0 | 24.0 | 7.0 | 3.0 | |
|
RH-502
|
7.0 | 22.5 | 5.0 | 2.0 | |
| RH-488 | 8.0 | 29.0 | 6.5 | 2.5 | |
| RH-549 | 7.0 | 19.0 | 7 | 2.0 | |
