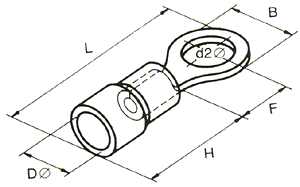

INSULATED RING TERMINAL RF-TYPE

??????棺0.5??1.5mm2(???????22??16) ????????lmax??19A

???	???							???
	?????????	????????	B	L	F	H	D??
		d2??	mm	mm	mm	mm	mm
RF 1.25??3	#4	3.2mm	5.7	17.8	4.95	10.0	4.3	??
RFS 1.25-3.5	#6	3.7mm	5.7	17.8	4.95
RFM 1.25-3.5	#6	3.7mm	6.6	20.1	6.3
RFL 1.25-3.5	#6	3.7mm	8.0	21.5	7.0
RFS 1.25-4	#8	4.3mm	6.6	20.1	6.3
RFL 1.25-4	#8	4.3mm	8.0	21.5	7.0
RF 1.25-5	#10	5.3mm	8.0	21.5	7.0
RF 1.25-6	1/4	6.5mm	11.6	27.5	11.1
RF 1.25-8	5/16	8.4mm	11.6	27.5	11.1
RF 1.25-10	3/8	10.5mm	13.6	31.6	13.9

???????:1.5??2.5mm2(???????16??14) ????????lmax??27A

???	???							???
	?????????	????????	B	L	F	H	D??
		d2??	mm	mm	mm	mm	mm
RF 2??3	#4	3.2mm	6.6	17.8	4.3	10.0	4.9	??
RFS 2??3.5	#6	3.7mm	6.6	17.8	4.3
RFM 2-3.5	#6	3.7mm	6.6	21.0	7.0
RFL 2-3.5	#6	3.7mm	8.5	22.5	7.75
RFS 2-4	#8	4.3mm	6.6	21.0	7.0
RFL 2-4	#8	4.3mm	8.5	22.5	7.75
RFS 2-5	#10	5.3mm	8.5	22.5	7.75
RFL 2-5	#10	5.3mm	9.5	22.5	7.25
RF 2-6	1/4	6.5mm	12.0	27.6	11.0
RF 2-8	5/16	8.4mm	12.0	27.6	11.0
RF 2-10	3/8	10.5mm	13.6	30.2	13.9

??????棺2.5??4mm2(???????14??12) ????????lmax??37A

???	???							???
	?????????	????????	B	L	F	H	D??
		d2??	mm	mm	mm	mm	mm
RF 3.5-4	#8	4.3mm	8.0	24.5	7.7	12.5	6.2	??
RFS 3.5-5	#10	5.3mm	8.0	24.5	7.7
RFL 3.5-5	#10	5.3mm	12.0	27.9	7.7
RF 3.5-6	1/4	6.5mm	12.0	27.9	7.7

??????棺4??6mm2(???????12??10) ????????lmax??48A

???	???							???
	?????????	????????	B	L	F	H	D??
		d??	mm	mm	mm	mm	mm
RF 5.5-3.5	#6	3.7mm	7.2	21.4	5.9	12.5	6.7	??
RFS 5.5-4	#8	4.3mm	7.2	21.4	5.9
RFL 5.5-4	#8	4.3mm	9.5	25.5	8.3
RF 5.5-5	#10	5.3mm	9.5	25.5	8.3
RF 5.5-6	1/4	6.5mm	12.0	31.5	13.0
RF 5.5-8	5/16	8.4mm	15.0	33.7	13.7
RF 5.5-10	3/8	10.5mm	15.0	33.7	13.7
RF 5.5-12	1/2	13.0mm	19.2	38.1	16.0

??????
