116-2 RCCN ???EN??????????
Ferrule - Non-Insulated
| ??? | ??? | ??????? | |||||

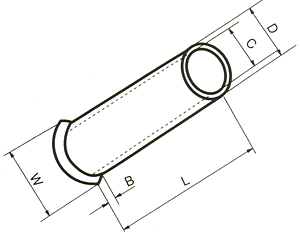

| L | D | C | B | W | A.W.G | mm2 | |
| mm | mm | mm | mm | mm | |||
| EN0.5-6 | 6.0 | 1.3 | 1.0 | 0.7 | 2.1 | #22 | 0.5 |
| EN0.75-6 | 6.0 | 1.5 | 1.2 | 0.7 | 2.5 | #20 | 0.75 |
| EN1.0-6 | 6.0 | 1.7 | 1.4 | 0.7 | 2.7 | #18 | 1.0 |
| EN1.0-10 | 10.0 | ||||||
| EN1.5-7 | 7.0 | 2.0 | 1.7 | 1.0 | 3.5 | #16 | 1.5 |
| EN1.5-10 | 10.0 | ||||||
| EN2.5-7 | 7.0 | 2.5 | 2.2 | 1.0 | 2.5 | #14 | 2.5 |
| EN2.5-12 | 12.0 | ||||||
| EN4.0-9 | 9.0 | 3.2 | 2.8 | 1.0 | 4.0 | #12 | 4.0 |
| EN4.0-12 | 12.0 | ||||||
| EN6.0-10 | 10.0 | 3.9 | 3.5 | 1.0 | 4.8 | #10 | 6.0 |
| EN6.0-12 | 12.0 | ||||||
| EN6.0-15 | 15.0 | ||||||
| EN10-12 | 12.0 | 4.9 | 4.5 | 1.2 | 5.8 | #7 | 10.0 |
| EN10-15 | 15.0 | ||||||
| EN10-18 | 18.0 | ||||||
| EN16-12 | 12.0 | 6.2 | 5.8 | 1.5 | 7.5 | #5 | 16.0 |
| EN16-15 | 15.0 | ||||||
| EN16-18 | 18.0 | ||||||
| EN25-16 | 16 | 7.9 | 7.5 | 1.8 | 9.2 | 4 | 25 |
| EN25-22 | 22 | ||||||
| EN35-16 | 16 | 8.7 | 8.3 | 2.0 | 10 | 2 | 35 |
| EN35-25 | 25 | ||||||
| EN50-20 | 20 | 10.9 | 10.3 | 2.0 | 12.4 | 1 | 50 |
| EN50-25 | 25 | ||||||
??????
