RING TERMINAL

??????棺0.5??1.5mm2(???????22??16) ????????lmax??19A

???	???

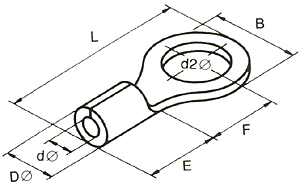

	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 1.25-3	#4	3.2mm	5.7	12.6	4.95	4.8	3.4	1.7
RS 1.25-3.5	#6	3.7mm	5.7	12.6	4.95
RM 1.25-3.5	#6	3.7mm	6.6	14.4	6.3
RL 1.25-3.5	#6	3.7mm	8.0	15.8	7.0
RS 1.25-4	#8	4.3mm	6.6	14.4	6.3
RL 1.25-4	#8	4.3mm	8.0	15.8	7.0
R 1.25-5	#10	5.3mm	8.0	15.8	7.0
R 1.25-6	1/4	6.5mm	11.6	21.8	11.1
R 1.25-8	5/16	8.4mm	11.6	21.8	11.1
R 1.25-10	3/8	10.5mm	13.6	25.5	13.9

???????:1.5??2.5mm2(???????16??14) ????????lmax??27A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 2-3	#4	3.2mm	6.6	12.3	4.3	4.8	4.1	2.3
RS 2-3.5	#6	3.7mm	6.6	12.3	4.3
RM 2-3.5	#6	3.7mm	6.6	16.0	7.0
RL 2-3.5	#6	3.7mm	8.5	16.8	7.75
RS 2-4	#8	4.3mm	6.6	16.0	7.0
RL 2-4	#8	4.3mm	8.5	16.8	7.75
RS 2-5	#10	5.3mm	8.5	16.8	7.75
RL 2-5	#10	5.3mm	9.5	16.8	7.25
R 2-6	1/4	6.5mm	12.0	21.8	11.0
R 2-8	5/16	8.4mm	12.0	21.8	11.0
R 2-10	3/8	10.5mm	13.6	25.5	13.9

??????棺2.5??4mm2(???????14??12) ????????lmax??37A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 3.5-4	#8	4.3mm	8.0	18.0	7.7	6.0	5.0	3.0
RS 3.5-5	#10	5.3mm	8.0	18.0	7.7
RL 3.5-5	#10	5.3mm	12.0	21.4	7.7
R 3.5-6	1/4	6.5mm	12.0	21.4	7.7

??????棺4??6mm2(???????12??10) ????????lmax??48A

?? ??	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 5.5-3.5	#6	3.7mm	7.2	15.7	5.9	6.8	5.6	3.4
RS 5.5-4	#8	4.3mm	7.2	15.7	5.9
RL 5.5-4	#8	4.3mm	9.5	19.8	8.3
R 5.5-5	#10	5.3mm	9.5	19.8	8.3
R 5.5-6	1/4	6.5mm	12.0	25.8	13.0
R 5.5-8	5/16	8.4mm	15.0	28.0	13.7
R 5.5-10	3/8	10.5mm	15.0	28.0	13.7
R 5.5-12	1/2	13.0mm	19.2	32.4	16.0

??????棺6??10mm2(???????8) ????????lmax??62A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 8-4	#8	4.3mm	12.0	23.8	9.3	8.5	7.2	4.5
RS 8-5	#10	5.3mm	8.8	23.8	11.1
RM 8-5	#10	5.3mm	12.0	23.8	9.3
RL 8-5	#10	5.3mm	15.0	29.8	13.8
RS 8-6	1/4	6.5mm	12.0	23.8	9.3
RL 8-6	1/4	6.5mm	15.0	29.8	13.8
R 8-8	5/16	8.4mm	15.0	29.8	13.8
R 8-10	3/8	10.5mm	15.0	29.8	13.8

??????棺10??16mm2(???????6) ????????lmax??88A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 14-4	#8	4.3mm	12.0	29.8	13.3	10.5	9.0	5.8
R 14-5	#10	5.3mm	12.0	29.8	13.3
RS 14-6	1/4	6.5mm	12.0	29.8	13.3
RL 14-6	1/4	6.5mm	16.0	32.8	13.3
R 14-8	5/16	8.4mm	16.0	32.8	14.5
R 14-10	3/8	10.5mm	16.0	32.8	14.5
R 14-12	1/2	13.0mm	22.0	41.0	19.5

??????棺16??25mm2(???????4) ????????lmax=115

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
RS 22-5	#10	5.3mm	12.2	33.2	14.5	12.0	11.5	7.7
RL 22-5	#10	5.3mm	16.5	33.7	13.5
RS 22-6	1/4	6.5mm	12.2	33.2	14.5
RL 22-6	1/4	6.5mm	16.5	33.7	13.5
R 22-8	5/16	8.4mm	16.5	33.7	13.5
R 22-10	3/8	10.5mm	16.5	33.7	13.5
R 22-11	7/16	11.5mm	22.0	42.5	19.5
R 22-12	1/2	13.0mm	22.0	42.5	19.5

??????棺35??50mm2(???????2) ????????lmax??160A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 38-5	#10	5.3mm	15.3	39.0	18.3	14.0	13.3	9.4
R 38-6	1/4	6.5mm	15.3	39.0	18.3
RS 38-8	5/16	8.4mm	15.3	39.0	18.3
RL 38-8	5/16	8.4mm	22.0	42.7	17.7
RS 38-10	3/8	10.5mm	15.3	39.0	18.3
RL 38-10	3/8	10.5mm	22.0	42.7	17.7
R 38-11	7/16	11.5mm	22.0	42.7	17.7
R 38-12	1/2	13.0mm	22.0	42.7	17.7

??????棺50??70mm2(???????1/0) ????????lmax??215A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 60-6	1/4	6.5mm	22.0	49.7	20.7	18.0	15.4	11.4
R 60-8	5/16	8.4mm
R 60-10	3/8	10.5mm
R 60-11	7/16	11.5mm
R 60-12	1/2	13.0mm
R 60-14	9/16	15.0mm	32.0	57.5	23.5
R 60-16	5/8	17.0mm
R 60-18	11/16	19.0mm
R 60-20	3/4	21.0mm
R 60-22	7/8	23.0mm

??????棺70??95mm2(???????2/0) ????????lmax??235A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 70-6	1/4	6.5mm	27.0	51.2	20.0	19.0	17.5	13.0
R 70-8	5/16	8.4mm
R 70-10	3/8	10.5mm
R 70-11	7/16	11.5mm
R 70-12	1/2	13.0mm
R 70-14	9/16	15.0mm	32.0	61.0	26.0
R 70-16	5/8	17.0mm
R 70-18	11/16	19.0mm
R 70-20	3/4	21.0mm
R 70-22	7/8	23.0mm

??????棺95??120mm2 (???????1/0)????????lmax??255A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 80-6	1/4	6.5mm	22.0	54.2	20.7	20.0	19.5	14.5
R 80-8	5/16	8.4mm
R 80-10	3/8	10.5mm
R 80-11	7/16	11.5mm
R 80-12	1/2	13.0mm
R 80-14	9/16	15.0mm	32.0	68.0	32.0
R 80-16	5/8	17.0mm
R 80-18	11/16	19.0mm
R 80-20	3/4	21.0mm
R 80-22	7/8	23.0mm

??????棺120??150mm2(???????2/0) ????????lmax??300A

?? ??	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 100-6	1/4	6.5mm	28.5	55.6	20.4	21.0	22.1	16.4
R 100-8	5/16	8.4mm
R 100-10	3/8	10.5mm
R 100-11	7/16	11.5mm
R 100-12	1/2	13.0mm
R 100-14	9/16	15.0mm	32.0	69.0	32.0
R 100-16	5/8	17.0mm
R 100-18	11/16	19.0mm
R 100-20	3/4	21.0mm
R 100-22	7/8	23.0mm

??????棺150??185mm2(???????250/300 MCM) ????????lmax??395A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d??	mm	mm	mm	mm	mm	mm
R 150-8	5/16	8.4mm	36.0	66.0	23.0	27.0	26.6	19.5
R 150-10	3/8	10.5mm
R 150-11	7/16	11.5mm
R 150-12	1/2	13.0mm
R 150-14	9/16	15.0mm
R 150-16	5/8	17.0mm
R 150-18	11/16	19.0mm	36.0	81.0	36.0
R 150-20	3/4	21.0mm
R 150-22	7/8	23.0mm
R 150-24	15/16	25.0mm
R 150-27	1	28.0mm

??????棺185??240mm2(???????300/350 MCM) ????????lmax??440A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 180-8	5/16	8.4mm	38.5	69.0	24.5	28.5	28.6	21.0
R 180-10	3/8	10.5mm
R 180-11	7/16	11.5mm
R 180-12	1/2	13.0mm
R 180-14	9/16	15.0mm
R 180-16	5/8	17.0mm
R 180-18	11/16	19.0mm	38.5	86.6	39.0
R 180-20	3/4	21.0mm
R 180-22	7/8	23.0mm
R 180-24	15/16	25.0mm
R 180-27	1	28.0mm

??????棺240??300mm2(???????400/500 MCM) ????????lmax??470A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 200-8	5/16	8.4mm	44.0	72.0	24.5	31.5	32.6	24.0
R 200-10	3/8	10.5mm
R 200-11	7/16	11.5mm
R 200-12	1/2	13.0mm
R 200-14	9/16	15.0mm
R 200-16	5/8	17.0mm
R 200-18	11/16	19.0mm	44.0	91.0	37.5
R 200-20	3/4	21.0mm
R 200-22	7/8	23.0mm
R 200-24	15/16	25.0mm
R 200-27	1	28.0mm

??????棺300??400mm2(???????500/600 MCM) ????????lmax??650A

???	???
	?????????	????????	B	L	F	E	D??	d??
		d2??	mm	mm	mm	mm	mm	mm
R 325-8	5/16	8.4mm	50.5	88.0	33.5	35.5	37.1	28.0
R 325-10	3/8	10.5mm
R 325-11	7/16	11.5mm
R 325-12	1/2	13.0mm
R 325-14	9/16	15.0mm
R 325-16	5/8	17.0mm
R 325-18	11/16	19.0mm	50.5	105.7	45.0
R 325-20	3/4	21.0mm
R 325-22	7/8	23.0mm
R 325-24	15/16	25.0mm
R 325-27	1	28.0mm

??????
