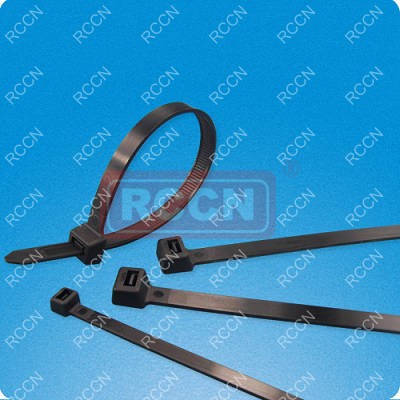

日成GUV型耐候性尼龍扎線帶抗紫外線扎帶

材質:采用進口耐候尼龍66(NYLON66)制成,
防火等級:94V-2,絕緣性良好, 耐久性不易老化折斷.
特點:耐候性原料達到抗紫外線效果,特適用于戶外使用.
顏色:黑色.
認證:美國UL:E306674,歐盟CE,歐盟RoHS環保,REACH.
特性:品質優良,捆扎后靜態-40℃耐熱至85℃不易斷裂松開.
使用方法:將扎帶末端穿過帶孔一拉,即可牢牢扣住.
目錄頁碼：B4-B5

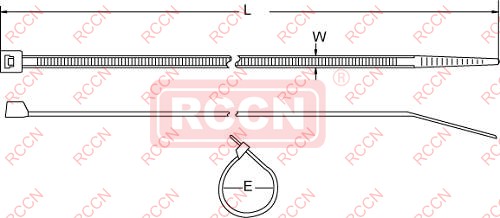

型號 Item No. 黑色 Black UV		長度 Length L		寬度 Width W		捆扎范圍 bundle diameter E		承受拉力 Tensile Strength
100 pcs	1000pcs	mm	inch	mm	inch	mm	inch	kgs	lbs
		80	3.15	2.4	0.09	15	0.59	8.0	18
		90	3.54	2.4	0.09	16	0.63	8.0	18
G100MUV	G100MUV/K	100	3.94	2.5	0.10	22	0.87	8.1	18
G120MUV	G120MUV/K	120	4.72	2.5	0.10	30	1.18	8.1	18
G140MUV	G140MUV/K	140	5.51	2.5	0.10	33	1.30	8.1	18
G150MUV	G150MUV/K	150	5.91	2.5	0.10	35	1.38	8.1	18
G160MUV	G160MUV/K	160	6.30	2.5	0.10	38	1.50	8.1	18
G200MUV	G200MUV/K	200	7.87	2.5	0.10	53	2.09	8.1	18
G250MUV	G250MUV/K	250	9.84	2.8	0.11	65	2.56	14	31
G300MUV	G300MUV/K	300	11.81	2.8	0.11	76	2.99	14	31
G120IUV	G120IUV/K	120	4.72	3.6	0.14	30	1.18	18.2	40
G140IUV	G140IUV/K	140	5.51	3.6	0.14	33	1.30	18.2	40
G150IUV	G150IUV/K	150	5.91	3.6	0.14	35	1.38	18.2	40
G180IUV	G180IUV/K	180	7.09	3.6	0.14	44	1.73	18.2	40
G200IUV	G200IUV/K	200	7.87	3.6	0.14	52	2.05	18.2	40
G250IUV	G250IUV/K	250	9.84	3.6	0.14	65	2.56	18.2	40
G300IUV	G300IUV/K	300	11.81	3.6	0.14	76	2.99	18.2	40
G370IUV	G370IUV/K	370	14.57	3.6	0.14	102	4.02	18.2	40
G120STUV	G120STUV/K	120	4.72	4.8	0.19	24	0.94	22.2	50
G150STUV	G150STUV/K	150	5.91	4.8	0.19	35	1.38	22.2	50
G160STUV	G160STUV/K	160	6.30	4.8	0.19	38	1.50	22.2	50
G190STUV	G190STUV/K	190	7.48	4.8	0.19	46	1.81	22.2	50
G200STUV	G200STUV/K	200	7.87	4.8	0.19	50	1.97	22.2	50
G215STUV	G215STUV/K	215	8.46	4.8	0.19	53	2.09	22.2	50
G250STUV	G250STUV/K	250	9.84	4.8	0.19	60	2.36	22.2	50
G265STUV	G265STUV/K	265	10.43	4.8	0.19	65	2.56	22.2	50
G280STUV	G280STUV/K	280	11.02	4.8	0.19	70	2.76	22.2	50
G300STUV	G300STUV/K	300	11.81	4.8	0.19	76	2.99	22.2	50
G370STUV	G370STUV/K	370	14.57	4.8	0.19	102	4.02	22.2	50
G390STUV	G390STUV/K	390	15.35	4.8	0.19	105	4.13	22.2	50
G430STUV		430	16.9	4.8	0.19	110	4.33	22.2	50
G450STUV		450	17.72	4.8	0.19	116	4.57	22.2	50
G530STUV		530	20.87	4.8	0.19	140	5.51	22.2	50
G550STUV		550	21.65	4.8	0.19	145	5.71	22.2	50
G635STUV		635	25.00	4.8	0.19	190	7.48	22.2	50
G685STUV		685	26.97	4.8	0.19	205	8.07	22.2	50
G730STUV		730	28.94	4.8	0.19	224	8.82	22.2	50
G830STUV		830	32.68	4.8	0.19	254	10.00	22.2	50
G920STUV		920	36.42	4.8	0.19	263	10.35	22.2	50

型號 Item No.		長度 Length L		寬度 Width W		捆扎范圍 bundle diameter E		承受拉力 Tensile Strength
	黑色 Black 100PCS	mm	inch	mm	inch	mm	inch	kgs	lbs
	G150HDUV	150	5.91	7.6	0.30	33	1.30	54.4	120
	G200HDUV	200	7.87	7.6	0.30	50	1.97	54.4	120
		240	9.45	7.6	0.30	63	2.48	54.4	120
		250	9.84	7.6	0.30	65	2.56	54.4	120
		300	11.02	7.6	0.30	76	2.99	54.4	120
	G370HDUV	370	14.49	7.6	0.30	102	4.02	54.4	120
NEW	G380HDSUV	380	14.94	7.6	0.30	110	4.32	54.4	120
	G430HDSUV	430	16.93	7.6	0.30	125	4.92	54.5	120
	G450HDSUV	450	17.72	7.6	0.30	132	5.20	54.5	120
NEW	G500HDSUV	500	19.66	7.6	0.3	147	5.78	54.4	120
	G530HDSUV	530	20.87	7.6	0.30	140	5.51	54.5	120
	G610HDSUV	610	24.02	7.6	0.30	180	7.07	54.5	120
	G430HDUV	430	16.93	9.0	0.35	110	4.33	79.4	175
	G450HDUV	450	17.72	9.0	0.35	120	4.72	79.4	175
	G530HDUV	530	20.87	9.0	0.35	140	5.51	79.4	175
	G610HDUV	610	24.02	9.0	0.35	187	7.00	79.4	175
	G710HDUV	710	27.95	9.0	0.35	190	7.48	79.4	175
	G780HDUV	780	30.55	9.0	0.35	228	8.98	79.4	175
	G830HDUV	830	32.09	9.0	0.35	239	9.41	79.4	175
	G920HDUV	920	35.91	9.0	0.35	263	10.35	79.4	175
	G1020HDUV	1020	40.16	9.0	0.35	295	11.61	79.4	175
	G1070HDUV	1070	42.00	9.0	0.35	320	12.60	79.4	175
	G1220HDUV	1220	48.00	9.0	0.35	365	14.37	79.4	175
	G1530HDUV	1530	60.23	9.0	0.35	460	18.15	79.4	175
