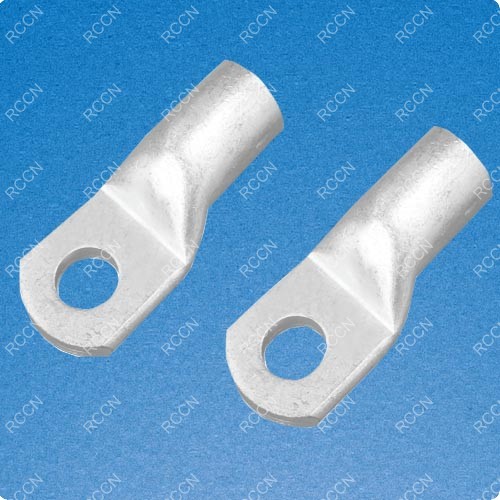

日成HUP-2015新銅管端子

產品材質,日成HUP銅管端子采用優質紫銅制成,導電性良好,,耐久性不易老化.
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
產品顏色:見實物圖片
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管,使用日成端子鉗壓緊即可.

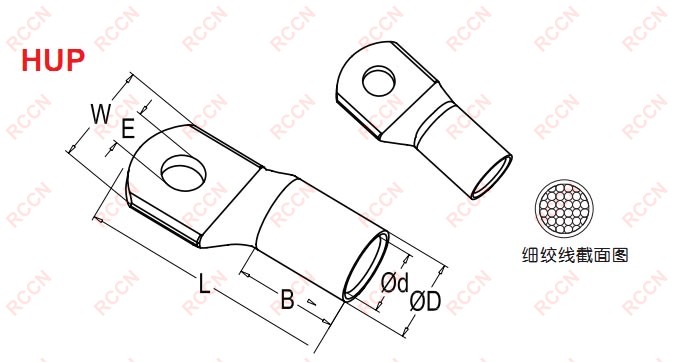

型號 Item No.	尺寸 DIMENSION
型號 Item No.	E	DΦ	dΦ	W	B	L1
HUP1.5-3	3.2	3.3	1.8	6.5	6.0	15.3
HUP1.5-4	4.3	3.3	1.8	6.5	6.0	17.0
HUP1.5-6	6.5	3.3	1.8	6.5	6.0	22.5
HUP2.5-3	3.2	4.2	2.3	7.5	6.0	15.3
HUP2.5-4	4.3	4.2	2.3	7.5	6.0	17.0
HUP2.5-5	5.3	4.2	2.3	7.5	6.0	18.8
HUP2.5-6	6.5	4.2	2.3	7.5	6.0	22.5
HUP2.5-8	8.5	4.2	2.3	7.5	6.0	27.8
HUP4-5	5.3	5.0	3.0	9.0	8.0	21.8
HUP4-6	6.5	5.0	3.0	9.0	8.0	25.5
HUP4-8	8.5	5.0	3.0	9.0	8.0	30.5
HUP6-5	5.3	6.5	3.5	10.0	9.0	27.5
HUP6-6	6.5	6.5	3.5	12.0	9.0	27.5
HUP6-8	8.5	6.5	3.5	15.0	9.0	27.5
HUP6-10	10.5	6.5	3.5	17.0	9.0	27.5
HUP6-12	13.0	6.5	3.5	19.0	9.0	27.5
HUP10-5	5.3	7.0	4.5	12	10	28.5
HUP10-6	6.5	7.0	4.5	12	10	28.5
HUP10-8	8.5	7.0	4.5	15	10	35.0
HUP10-10	10.5	7.0	4.5	17	10	39.0
HUP10-12	13.0	7.0	4.5	19	10	42.0
HUP16-5	5.3	8.5	5.5	12	13	32.5
HUP16-6	6.5	8.5	5.5	12	13	33.3
HUP16-8	8.5	8.5	5.5	15	13	37.5
HUP16-10	10.5	8.5	5.5	17	13	41.5
HUP16-12	13.0	8.5	5.5	19	13	45.0
HUP25-5	5.3	10	7.0	14	15	37.5
HUP25-6	6.5	10	7.0	14	15	37.5
HUP25-8	8.5	10	7.0	16	15	42.0
HUP25-10	10.5	10	7.0	18	15	46.0
HUP25-12	13.0	10	7.0	19	15	48.0
HUP35-6	6.5	12	8.5	17	17	39.5
HUP35-8	8.5	12	8.5	17	17	44.0
HUP35-10	10.5	12.	8.5	19	17	49.0
HUP35-12	13.0	12	8.5	21	17	51.0
HUP35-14	15.0	12	8.5	21	17	54.5
HUP50-6	6.5	14	10	20	19	47.0
HUP50-8	8.5	14	10	20	19	47.0
HUP50-10	10.5	14	10	20	19	51.0
HUP50-12	13.0	14	10	20	19	56.0
HUP50-14	15.0	14	10	23	19	59.5
HUP50-16	17.0	14	10	28	19	62.0
HUP70-8	8.5	16.5	12	23.5	21	53
HUP70-10	10.5	16.5	12	23.5	21	56
HUP70-12	13.0	16.5	12	23.5	21	59
HUP70-14	15.0	16.5	12	23.5	21	62.5
HUP70-16	17.0	16.5	12	28.0	21	66
HUP95-8	8.5	18	13.5	26	25	60
HUP95-10	10.5	18	13.5	26	25	60
HUP95-12	13.0	18	13.5	26	25	62
HUP95-14	15.0	18	13.5	26	25	65.5
HUP95-16	17.0	18	13.5	28	25	70
HUP120-8	8.5	19.5	15.0	28	26	65
HUP120-10	10.5	19.5	15.0	28	26	65
HUP120-12	13.0	19.5	15.0	28	26	65
HUP120-14	15.0	19.5	15.0	28	26	67
HUP120-16	17.0	19.5	15.0	30	26	70
HUP120-20	21.0	21	15.0	36	28	85
HUP150-8	8.5	21	16..5	30.5	30	70
HUP150-10	10.5	21	16..5	30.5	30	72
HUP150-12	13.0	21	16..5	30.5	30	72
HUP150-14	15.0	21	16..5	30.5	30	72
HUP150-16	17.0	21	16..5	30.5	30	74
HUP150-20	21.0	21	16..5	46.0	30	88
HUP185-10	10.5	24	19.0	35	30	83.0
HUP185-12	13.0	24	19.0	35	30	83.0
HUP185-14	15.0	24	19.0	35	30	83.0
HUP185-16	17.0	24	19.0	35	30	83.0
HUP185-20	21.0	24	19.0	39	30	91.0
HUP240-10	10.5	26	21.0	38	35	93.5
HUP240-12	13.0	26	21.0	38	35	93.5
HUP240-14	15.0	26	21.0	38	35	93.5
HUP240-16	17.0	26	21.0	38	35	93.5
HUP240-20	21.0	26	21.0	38	35	93.5
HUP300-12	13.0	29.5	23.5	43	44	111
HUP300-14	15.0	29.5	23.5	43	44	111
HUP300-16	17.0	29.5	23.5	43	44	111
HUP300-20	21.0	29.5	23.5	43	44	111
