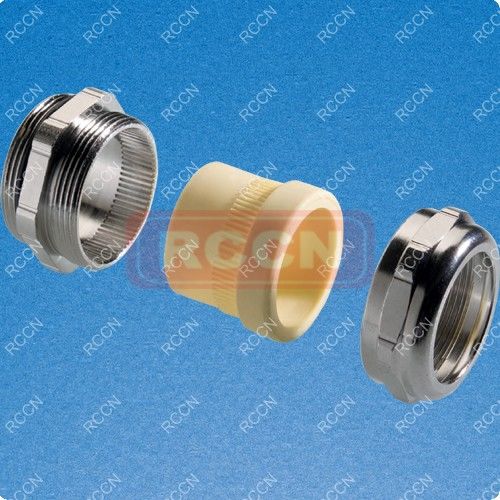

日成DB型加厚金屬防水電纜接頭

特厚板型號例:DB-M20*1.5-12/L=15
產品材質:金屬:黃銅鍍鎳制成,橡膠:TPE
螺牙規格:M/PG/NPT/G(PF) 產品認證:CE,EX,ROHS
工作溫度:-50°C至150°C 防護等級:IP68
使用方法:將本體固定機板,旋緊迫緊頭
即可固定電纜
螺紋標準及開孔數據參考A24頁
目錄頁碼：A40頁

型號Item No.	適用電纜 Cable Range Φ	螺紋長度 Thread Length L1	配套螺母上限板厚 +Nut Max platethick	接合長度 Joint Length L2+L3	板手 Spanner SW A/F	包裝 Std.Pkg. pcs
公制螺紋 M
DB-M12×1.5-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DB-M16×1.5-6.5	4-6.5	7	≤3.5	20	18/18
DB-M16×1.5-8	5-8	7	≤3.5	20	18/18
DB-M16×1.5-10	6-10	7	≤3.5	20	18/18
DB-M18×1.5-6.5	4-6.5	8	≤4.5	20	20/20
DB-M18×1.5-8	5-8	8	≤4.5	20	20/20
DB-M18×1.5-10	6-10	8	≤4.5	20	20/20
DB-M18×1.5-11	7-11	8	≤4.5	20	20/20
DB-M20×1.5-6.5	4-6.5	8	≤4.5	20	22/22
DB-M20×1.5-8	5-8	8	≤4.5	20	22/22
DB-M20×1.5-10	6-10	8	≤4.5	20	22/22
DB-M20×1.5-11	7-11	8	≤4.5	20	22/22
DB-M20×1.5-13	9-13	8	≤4.5	20	22/22
DB-M22×1.5-6.5	4-6.5	9	≤4.5	21	24/24
DB-M22×1.5-8	5-8	9	≤4.5	21	24/24
DB-M22×1.5-10	6-10	9	≤4.5	21	24/24
DB-M22×1.5-11	7-11	9	≤4.5	21	24/24
DB-M22×1.5-13	9-13	9	≤4.5	21	24/24
DB-M22×1.5-16	11-16	9	≤4.5	21	24/24
DB-M25×1.5-6.5	4-6.5	9	≤4.5	21	28-30/24	25PCS
DB-M25×1.5-8	5-8	9	≤4.5	21	28-30/24
DB-M25×1.5-10	6-10	9	≤4.5	21	28-30/24
DB-M25×1.5-11	7-11	9	≤4.5	21	28-30/24
DB-M25×1.5-13	9-13	9	≤4.5	21	28-30/24
DB-M25×1.5-16	11-16	9	≤4.5	21	28-30/24
DB-M32×1.5-11	7-11	11	≤5.5	25	36-30/30
DB-M32×1.5-13	9-13	11	≤5.5	25	36-30/30
DB-M32×1.5-16	11-16	11	≤5.5	25	36-30/30
DB-M32×1.5-18	14-18	11	≤5.5	25	36-30/30
DB-M32×1.5-21	17-21	11	≤5.5	25	36-30/30
DB-M40×1.5-16	11-16	11	≤5.5	25	44-40/40	5PCS
DB-M40×1.5-18	14-18	11	≤5.5	25	44-40/40
DB-M40×1.5-21	17-21	11	≤5.5	25	44-40/40
DB-M40×1.5-25	20-25	11	≤5.5	25	44-40/40
DB-M40×1.5-30	25-30	11	≤5.5	25	44-40/40
DB-M50×1.5-32	27-32	11	≤5.5	28	54-50/50
DB-M50×1.5-34	29-34	11	≤5.5	28	54-50/50
DB-M50×1.5-36	32-36	11	≤5.5	28	54-50/50
DB-M63×1.5-44	40-45	14	≤9.5	30	68-64/64
德制螺紋 PG
DB-PG7-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DB-PG9-6.5	4-6.5	7	≤3.5	20	18/18
DB-PG9-8	5-8	7	≤3.5	20	18/18
DB-PG9-10	6-10	7	≤3.5	20	18/18
DB-PG11-6.5	4-6.5	8	≤4.5	20	20/20
DB-PG11-8	5-8	8	≤4.5	20	20/20
DB-PG11-10	6-10	8	≤4.5	20	20/20
DB-PG11-11	7-11	8	≤4.5	20	20/20
DB-PG13.5-6.5	4-6.5	8	≤4.5	20	22/22
DB-PG13.5-8	5-8	8	≤4.5	20	22/22
DB-PG13.5-10	6-10	8	≤4.5	20	22/22
DB-PG13.5-11	7-11	8	≤4.5	20	22/22
DB-PG13.5-13	9-13	8	≤4.5	20	22/22
DB-PG16-6.5	4-6.5	9	≤4.5	21	24/24
DB-PG16-8	5-8	9	≤4.5	21	24/24
DB-PG16-10	6-10	9	≤4.5	21	24/24
DB-PG16-11	7-11	9	≤4.5	21	24/24
DB-PG16-13	9-13	9	≤4.5	21	24/24
DB-PG16-16	11-16	9	≤4.5	21	24/24
DB-PG21-11	7-11	11	≤5.5	25	36-30/30	25PCS
DB-PG21-13	9-13	11	≤5.5	25	36-30/30
DB-PG21-16	11-16	11	≤5.5	25	36-30/30
DB-PG21-18	14-18	11	≤5.5	25	36-30/30
DB-PG21-21	17-21	11	≤5.5	25	36-30/30
DB-PG29-16	11-16	11	≤5.5	25	44-40/40	5PCS
DB-PG29-18	14-18	11	≤5.5	25	44-40/40
DB-PG29-21	17-21	11	≤5.5	25	44-40/40
DB-PG29-25	20-25	11	≤5.5	25	44-40/40
DB-PG29-30	25-30	11	≤5.5	25	44-40/40
DB-PG36-32	27-32	11	≤5.5	28	54-50/50
DB-PG36-32	29-34	11	≤5.5	28	54-50/50
DB-PG36-36	32-36	11	≤5.5	28	54-50/50
DB-PG48-44	40-45	14	≤9.5	30	68-64/64
美制螺紋 NPT
DB-NPT1/4-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DB-NPT3/8-6.5	4-6.5	7	≤3.5	20	18/18
DB-NPT3/8-8	5-8	7	≤3.5	20	18/18
DB-NPT3/8-10	6-10	7	≤3.5	20	18/18
DB-NPT1/2-6.5	4-6.5	8	≤4.5	20	22/22
DB-NPT1/2-8	5-8	8	≤4.5	20	22/22
DB-NPT1/2-10	6-10	8	≤4.5	20	22/22
DB-NPT1/2-11	7-11	8	≤4.5	20	22/22
DB-NPT1/2-13	9-13	8	≤4.5	20	22/22
DB-NPT3/4-6.5	4-6.5	9	≤4.5	21	28-30/24	25PCS
DB-NPT3/4-8	5-8	9	≤4.5	21	28-30/24
DB-NPT3/4-10	6-10	9	≤4.5	21	28-30/24
DB-NPT3/4-11	7-11	9	≤4.5	21	28-30/24
DB-NPT3/4-13	9-13	9	≤4.5	21	28-30/24
DB-NPT3/4-16	11-16	9	≤4.5	21	28-30/24
DB-NPT1-11	7-11	11	≤5.5	25	36-30/30
DB-NPT1-13	9-13	11	≤5.5	25	36-30/30
DB-NPT1-16	11-16	11	≤5.5	25	36-30/30
DB-NPT1-18	14-18	11	≤5.5	25	36-30/30
DB-NPT1-21	17-21	11	≤5.5	25	36-30/30
DB-NPT1-1/4-16	11-16	11	≤5.5	25	44-40/40	5PCS
DB-NPT1-1/4-18	14-18	11	≤5.5	25	44-40/40
DB-NPT1-1/4-21	17-21	11	≤5.5	25	44-40/40
DB-NPT1-1/4-25	20-25	11	≤5.5	25	44-40/40
DB-NPT1-1/4-30	25-30	11	≤5.5	25	44-40/40
DB-NPT1-1/2-32	27-32	11	≤5.5	28	54-50/50
DB-NPT1-1/2-34	29-34	11	≤5.5	28	54-50/50
DB-NPT1-1/2-36	32-36	11	≤5.5	28	54-50/50
DB-NPT2-44	40-45	14	≤9.5	30	68-64/64
英制螺紋 G
DB-G1/4-6.5	4-6.5	7	≤3.5	20	14/14	100PCS
DB-G3/8-6.5	4-6.5	7	≤3.5	20	18/18
DB-G3/8-8	5-8	7	≤3.5	20	18/18
DB-G3/8-10	6-10	7	≤3.5	20	18/18
DB-G1/2-6.5	4-6.5	8	≤4.5	20	22/22
DB-G1/2-8	5-8	8	≤4.5	20	22/22
DB-NG1/2-10	6-10	8	≤4.5	20	22/22
DB-G1/2-11	7-11	8	≤4.5	20	22/22
DB-G1/2-13	9-13	8	≤4.5	20	22/22
DB-G3/4-6.5	4-6.5	9	≤4.5	21	28-30/24	25PCS
DB-G3/4-8	5-8	9	≤4.5	21	28-30/24
DB-G3/4-10	6-10	9	≤4.5	21	28-30/24
DB-G3/4-11	7-11	9	≤4.5	21	28-30/24
DB-G3/4-13	9-13	9	≤4.5	21	28-30/24
DB-G3/4-16	11-16	9	≤4.5	21	28-30/24
DB-G1-11	7-11	11	≤5.5	25	36-30/30
DB-G1-13	9-13	11	≤5.5	25	36-30/30
DB-G1-16	11-16	11	≤5.5	25	36-30/30
DB-G1-18	14-18	11	≤5.5	25	36-30/30
DB-G1-21	17-21	11	≤5.5	25	36-30/30
DB-G1-1/4-16	11-16	11	≤5.5	25	44-40/40	5PCS
DB-G1-1/4-18	14-18	11	≤5.5	25	44-40/40
DB-G1-1/4-21	17-21	11	≤5.5	25	44-40/40
DB-G1-1/4-25	20-25	11	≤5.5	25	44-40/40
DB-G1-1/4-30	25-30	11	≤5.5	25	44-40/40
DB-G1-1/2-32	27-32	11	≤5.5	28	54-50/50
DB-G1-1/2-34	29-34	11	≤5.5	28	54-50/50
DB-G1-1/2-36	32-36	11	≤5.5	28	54-50/50
DB-G2-44	40-45	14	≤9.5	30	68-64/64
