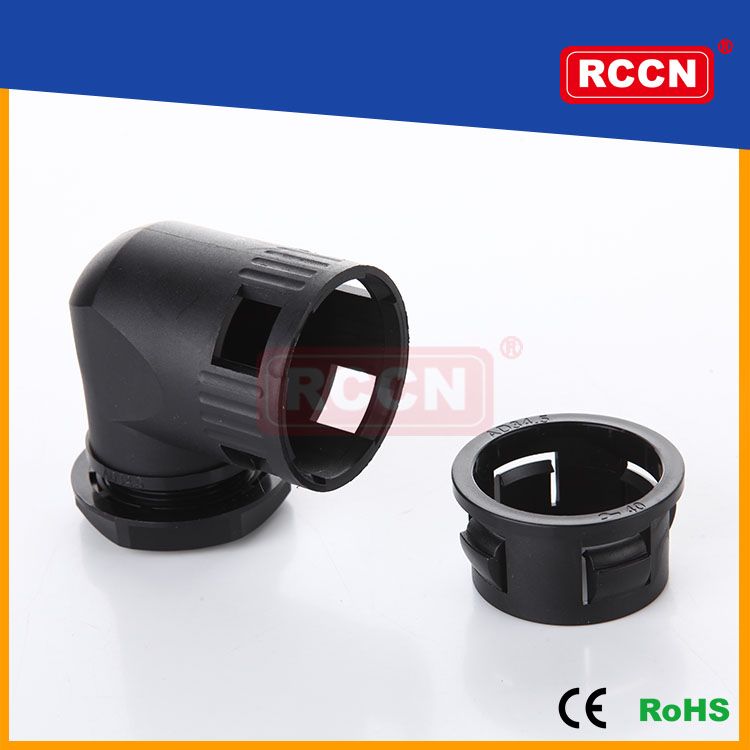

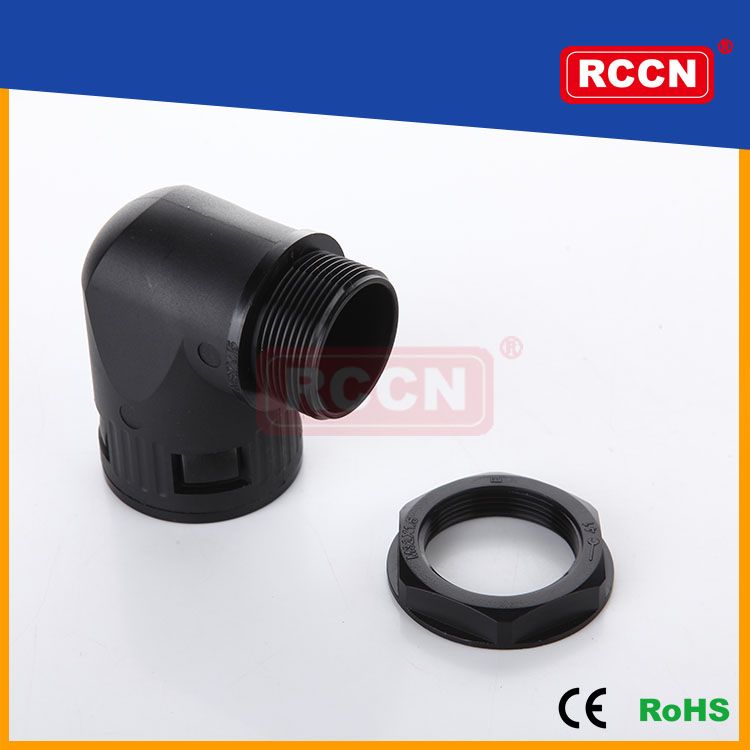

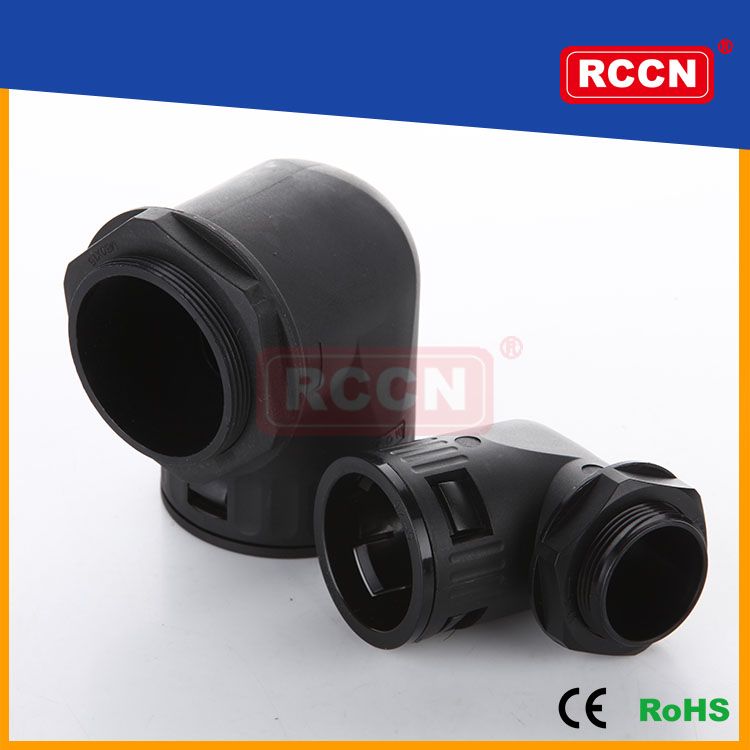

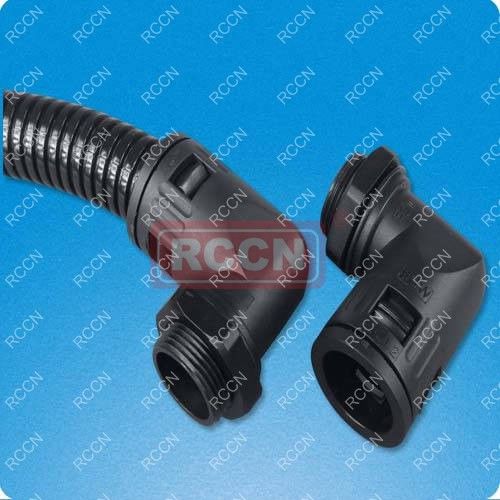

日成BQW型直角型軟管接頭

螺紋規格: 公制螺紋(Metric)/德制螺紋(PG)
產品材質: 尼龍66(NYLON66)原料制成
產品認證: 歐洲CE,ROHS
防火等級: UL94V-2
顏色種類: 黑色B、灰色G.
工作溫度: -40°C至85°C
產品特性: 裝卸只需撥插無需工具
備注: 含螺母,不帶防水墊片,需外購
目錄頁碼：A62

型號 Item No .		螺紋規格 Thread	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length GL	內孔徑 Smallest inner 1Φ	外徑 Largest outer BΦ	長度 Total length H
黑色 Black Ral9005	深灰色Gray Ral7037	螺紋規格 Thread	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length GL	內孔徑 Smallest inner 1Φ	外徑 Largest outer BΦ	長度 Total length H
公制螺紋 BGW-M
	BGW-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
	BGW-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
	BGW-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
	BGW-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
	BGW-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
	BGW-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
	BGW-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
BGW-M22B	BGW-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
	BGW-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
	BGW-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
	BGW-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
	BGW-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
	BGW-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
	BGW-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
	BGW-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
德制螺紋 BGW-P
	BGW-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
	BGW-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
	BGW-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
	BGW-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
BGW-PG13.5B	BGW-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
	BGW-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
	BGW-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
	BGW-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
	BGW-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
BGW-PG42B	BGW-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
	BGW-PG48G	PG48	59.3	14.0	48.0	64.0	88.0
公制螺紋 BGW1-M/防水型
	BGW1-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
	BGW1-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
	BGW1-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
	BGW1-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
	BGW1-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
	BGW1-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
	BGW1-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
BGW1-M22B	BGW1-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
	BGW1-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
	BGW1-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
	BGW1-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
	BGW1-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
	BGW1-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
	BGW1-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
	BGW1-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
德制螺紋 BGW1-P/防水型
	BGW1-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
	BGW1-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
	BGW1-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
	BGW1-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
BGW1-PG13.5B	BGW1-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
	BGW1-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
	BGW1-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
	BGW1-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
	BGW1-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
BGW1-PG42B	BGW1-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
	BGW1-PG48G	PG48	59.3	14.0	48.0	64.0	88.0

下表為原老目錄型號（保留選型）

型號Item No.		螺牙規格 Thread	對應軟管 Tubing outer BG	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length C	內孔徑 Smallest inner I	外徑 Largest outer B	長度 Total length D
黑色 Black	灰色 Gray	螺牙規格 Thread	對應軟管 Tubing outer BG	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length C	內孔徑 Smallest inner I	外徑 Largest outer B	長度 Total length D
公制螺紋 BGQ-M
	BGW-M10G	M10×1.0	BG-07	10.0	10.0	8.5	17.0	33.5
	BGW-M12G	M12×1.5	BG-07	12.0	10.0	8.5	17.0	33.5
	BGW-M16G	M16×1.5	BG-10	16.0	10.0	12.0	20.0	36.0
	BGW-M16G	M16×1.5	BG-12	16.0	10.0	12.0	23.0	42.0
BGW-M16B	BGW-M16G	M16×1.5	BG-17	16.0	10.0	12.0	29.5	50.0
	BGW-M18G	M18×1.5	BG-12	18.0	10.0	15.5	23.0	42.0
	BGW-M20G	M20×1.5	BG-12	20.0	10.0	15.5	23.0	42.0
	BGW-M20G	20×1.5	BG-15	20.0	11.0	13.5	26.5	46.0
	BGW-M20G	20×1.5	BG-17	20.0	12.0	14.8	29.5	50.0
	BGW-M24G	M24×1.5	BG-17	24.0	13.0	18.0	29.5	50.0
	BGW-M25G	M25×1.5	BG-17	25.0	13.0	14.8	29.0	46.0
	BGW-M25G	M25×1.5	BG-23	25.0	13.0	18.0	29.0	50.0
	BGW-M32G	M32×1.5	BG-29	32.0	15.0	24.0	44.0	67.5
	BGW-M40G	M40×1.5	BG-36	40.0	15.0	32.0	52.0	83.0
	BGW-M50G	M50×1.5	BG-48	50.0	16.0	39.0	64.0	88.0
	BGW-M63G	M63×1.5	BG-48	63.0	16.0	53.0	64.0	88.0
德制螺紋 BGW-P
	BGW-PG7G	PG7	BG-07	12.5	10.0	8.5	17.0	33.5
	BGW-PG9G	PG9	BG-10	15.2	10.0	12.0	20.0	36.0
	BGW-PG11G	PG11	BG-12	18.6	10.0	12.0	23.0	42.0
	BGW-PG13.5G	PG13.5	BG-15	20.4	11.0	13.5	26.5	46.0
	BGW-PG16G	PG16	BG-17	22.5	12.0	18.0	29.5	50.0
	BGW-PG21G	PG21	BG-23	28.3	12.0	24.0	37.0	57.0
	BGW-PG29G	PG29	BG-29	37.0	12.0	32.0	44.0	67.5
	BGW-PG36G	PG36	BG-36	47.0	12.0	36.0	52.0	83.0
	BGW-PG48G	PG48	BG-48	59.3	14.0	48.0	64.0	88.0
