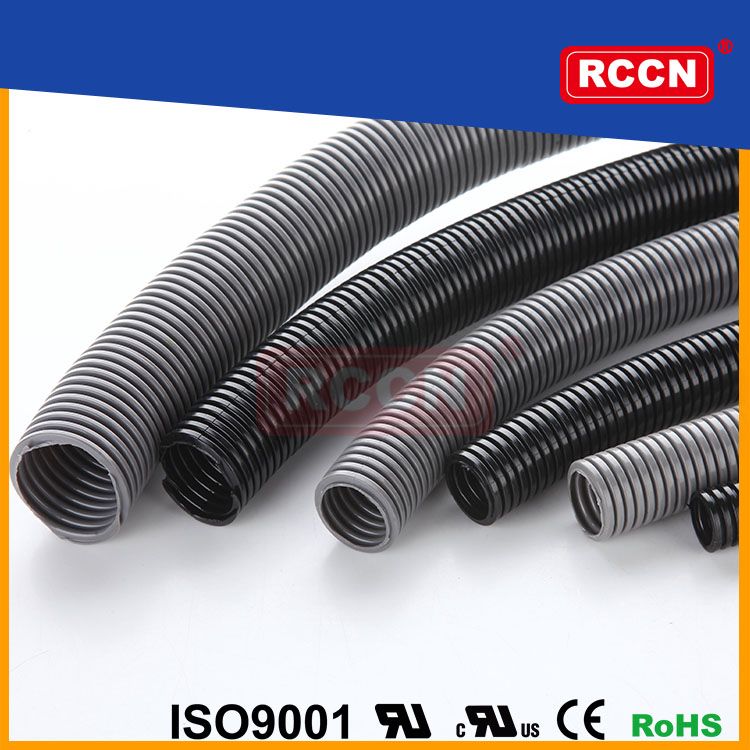

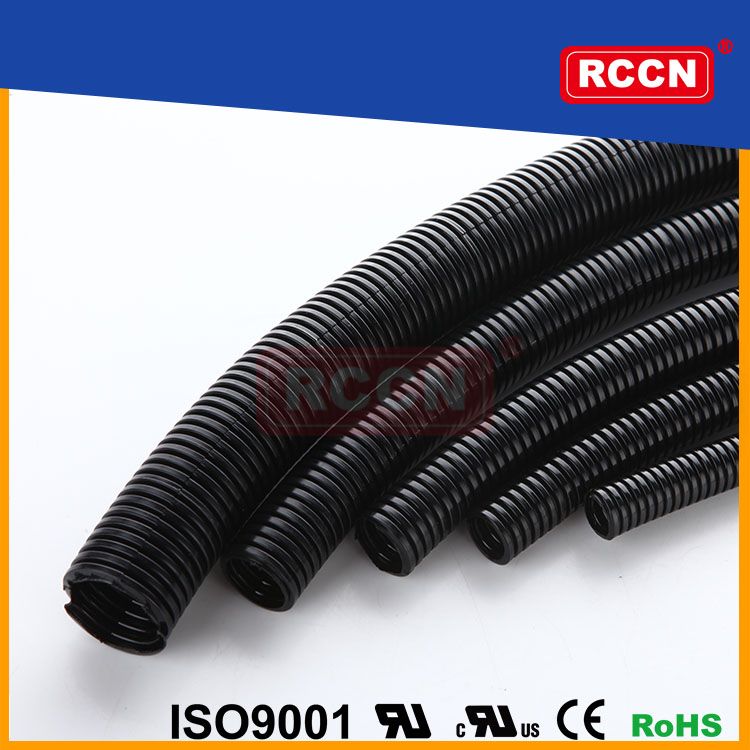

日成PAV0尼龍阻燃波紋管

材       質: 進口PA6 尼龍(Polyamide)
溫       度:-40℃-125℃,短時達到150℃
防火等級:94-V0。
產品認證: 歐洲CE, 歐洲環保ROHS,REACH.
特       性:柔軟有韌性，抗扭曲；機械強度好，可以承受重的負載；耐酸，耐切屑液，潤滑油，冷卻液等；表面有光澤，耐摩擦；黑色耐紫外線，機械強度高；
用       途:可保護電線電纜不受外力磨損及絕緣承載能力:可以承受腳踩和更高強度的重壓，不變形，但可以迅速恢復并且本身無任何損傷.
應用場合:風電發電, 地鐵軌道,電力機車的車廂內使用；機械制造,電氣絕緣保護,公共交通設備;照明設備;汽車制造;航空設備；

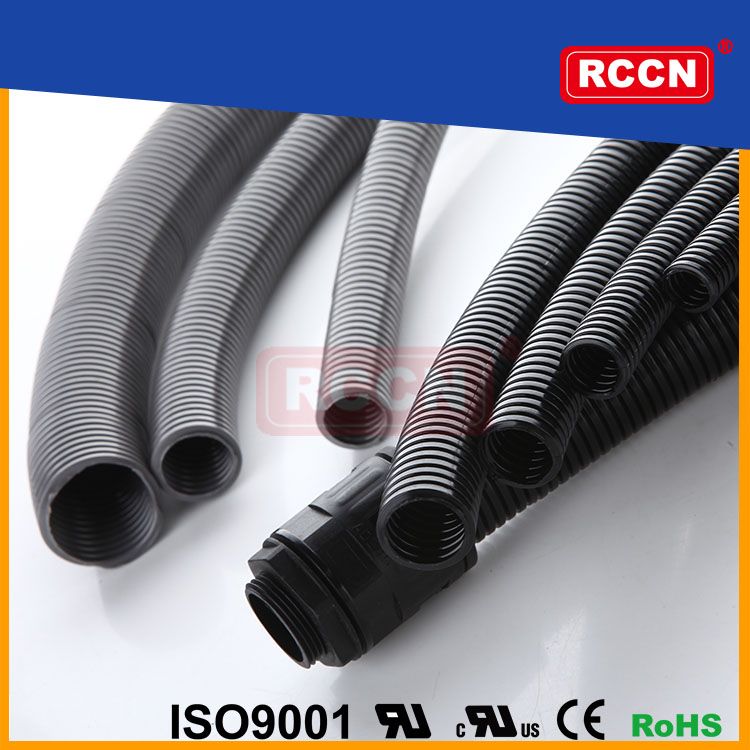

使用方法:將電線電纜穿入管內，再配合日成系列軟管接頭使用即可
備       注:特殊包裝長度有起訂量要求。
目錄頁碼:A52

型號 Item No.	規格 Sizes	內徑 I.D. A	外徑 O.D. B	靜態彎曲半徑	動態彎曲半徑	包裝 Packing M
黑色阻燃剖開Black Ral9005
BGR-07NBV0	1/4''	6.5	10.0	13	35	100M
BGR-10NBV0	5/16''	10.0	13.0	20	45	100M
BGR-12NBV0	-	12.0	15.8	35	55	100M
BGR-15NBV0	3/8''	14.3	18.5	40	65	100M
BGR-17NBV0	1/2''	17.0	21.2	45	75	100M
BGR-23NBV0	3/4''	23.0	28.5	55	100	50M
BGR-29NBV0	1''	29.0	34.5	65	120	50M
BGR-36NBV0	1 1/4''	36.0	42.5	90	150	50M
BGR-48NBV0	2''	48.0	54.5	100	190	25M
BGR-08NBV0	9/32''	8.0	11.5	13	25	100M
BGR-11NBV0	-	11.0	14.0	20	45	100M
BGR-16NBV0	-	14.5	20.0	45	75	100M
BGR-20NBV0	-	20.0	25.0	50	85	50M
BGR-25NBV0	-	25.0	31.5	50	110	50M
深灰阻燃剖開Gray Ral7037
BGR-07NGV0	1/4''	6.5	10.0	13	35	100M
BGR-10NGV0	5/16''	10.0	13.0	20	45	100M
BGR-12NGV0	-	12.0	15.8	35	55	100M
BGR-15NGV0	3/8''	14.3	18.5	40	65	100M
BGR-17NGV0	1/2''	17.0	21.2	45	75	100M
BGR-23NGV0	3/4''	23.0	28.5	55	100	50M
BGR-29NGV0	1''	29.0	34.5	65	120	50M
BGR-36NGV0	1 1/4''	36.0	42.5	90	150	50M
BGR-48NGV0	2''	48.0	54.5	100	190	25M
BGR-08NGV0	9/32''	8.0	11.5	13	25	100M
BGR-11NGV0	-	11.0	14.0	20	45	100M
BGR-16NGV0	-	14.5	20.0	45	75	100M
BGR-20NGV0	-	20.0	25.0	50	85	50M
BGR-25NGV0	-	25.0	31.5	50	110	50M
白色White Ral9012
BG-07NW	1/4''	6.5	10.0	13	35	100M
BG-10NW	5/16''	10.0	13.0	20	45	100M
BG-12NW	-	12.0	15.8	35	55	100M
BG-15NW	3/8''	14.3	18.5	40	65	100M
BG-17NW	1/2''	17.0	21.2	45	75	100M
BG-23NW	3/4''	23.0	28.5	55	100	50M
BG-29NW	1''	29.0	34.5	65	120	50M
BG-36NW	1 1/4''	36.0	42.5	90	150	50M
BG-48NW	2''	48.0	54.5	100	190	25M
BG-08NW	9/32''	8.0	11.5	13	25	100M
BG-11NW	-	11.0	14.0	20	45	100M
BG-16NW	-	14.5	20.0	45	75	100M
BG-20NW	-	20.0	25.0	50	85	50M
BG-25NW	-	25.0	31.5	50	110	50M
白色阻燃White Ral9012
BGR-07NW	1/4''	6.5	10.0	13	35	100M
BGR-10NW	5/16''	10.0	13.0	20	45	100M
BGR-12NW	-	12.0	15.8	35	55	100M
BGR-15NW	3/8''	14.3	18.5	40	65	100M
BGR-17NW	1/2''	17.0	21.2	45	75	100M
BGR-23NW	3/4''	23.0	28.5	55	100	50M
BGR-29NW	1''	29.0	34.5	65	120	50M
BGR-36NW	1 1/4''	36.0	42.5	90	150	50M
BGR-48NW	2''	48.0	54.5	100	190	25M
BGR-08NW	9/32''	8.0	11.5	13	25	100M
BGR-11NW	-	11.0	14.0	20	45	100M
BGR-16NW	-	14.5	20.0	45	75	100M
BGR-20NW	-	20.0	25.0	50	85	50M
BGR-25NW	-	25.0	31.5	50	110	50M
白色剖開White Ral9012
BGR-07NW	1/4''	6.5	10.0	13	35	100M
BGR-10NW	5/16''	10.0	13.0	20	45	100M
BGR-12NW	-	12.0	15.8	35	55	100M
BGR-15NW	3/8''	14.3	18.5	40	65	100M
BGR-17NW	1/2''	17.0	21.2	45	75	100M
BGR-23NW	3/4''	23.0	28.5	55	100	50M
BGR-29NW	1''	29.0	34.5	65	120	50M
BGR-36NW	1 1/4''	36.0	42.5	90	150	50M
BGR-48NW	2''	48.0	54.5	100	190	25M
BGR-08NW	9/32''	8.0	11.5	13	25	100M
BGR-11NW	-	11.0	14.0	20	45	100M
BGR-16NW	-	14.5	20.0	45	75	100M
BGR-20NW	-	20.0	25.0	50	85	50M
BGR-25NW	-	25.0	31.5	50	110	50M
桔紅色Orange Ral2003
BG-07NO	1/4''	6.5	10.0	13	35	100M
BG-10NO	5/16''	10.0	13.0	20	45	100M
BG-12NO	-	12.0	15.8	35	55	100M
BG-15NO	3/8''	14.3	18.5	40	65	100M
BG-17NO	1/2''	17.0	21.2	45	75	100M
BG-23NO	3/4''	23.0	28.5	55	100	50M
BG-29NO	1''	29.0	34.5	65	120	50M
BG-36NO	1 1/4''	36.0	42.5	90	150	50M
BG-48NO	2''	48.0	54.5	100	190	25M
BG-08NO	9/32''	8.0	11.5	13	25	100M
BG-11NO	-	11.0	14.0	20	45	100M
BG-16NO	-	14.5	20.0	45	75	100M
BG-20NO	-	20.0	25.0	50	85	50M
BG-25NO	-	25.0	31.5	50	110	50M
桔紅色剖開Orange Ral2003
BGR-07NO	1/4''	6.5	10.0	13	35	100M
BGR-10NO	5/16''	10.0	13.0	20	45	100M
BGR-12NO	-	12.0	15.8	35	55	100M
BGR-15NO	3/8''	14.3	18.5	40	65	100M
BGR-17NO	1/2''	17.0	21.2	45	75	100M
BGR-23NO	3/4''	23.0	28.5	55	100	50M
BGR-29NO	1''	29.0	34.5	65	120	50M
BGR-36NO	1 1/4''	36.0	42.5	90	150	50M
BGR-48NO	2''	48.0	54.5	100	190	25M
BGR-08NO	9/32''	8.0	11.5	13	25	100M
BGR-11NO	-	11.0	14.0	20	45	100M
BGR-16NO	-	14.5	20.0	45	75	100M
BGR-20NO	-	20.0	25.0	50	85	50M
BGR-25NO	-	25.0	31.5	50	110	50M

本品為定做產品，有起訂量要求，本品NB1與NB彎曲性能一樣，與NB型區別是產品圓圈的環剛性硬度降低表面柔軟。
采用進口PA6軟質料制成。

柔軟型-型號 Item No .		規格 Sizes	內徑 I.D. A	外徑 O.D. B	包裝 Packing M
黑色阻燃	灰色阻燃	規格 Sizes	內徑 I.D. A	外徑 O.D. B	包裝 Packing M
BG-07NB1V0	BG-07NG1V0	1/4''	6.5	10.0	100M
BG-10NB1V0	BG-10NG1V0	5/16''	10.0	13.0	100M
BG-12NB1V0	BG-12NG1V0	-	12.0	15.8	100M
BG-15NB1V0	BG-15NG1V0	3/8''	14.3	18.5	100M
BG-17NB1V0	BG-17NG1V0	1/2''	17.0	21.2	100M
BG-23NB1V0	BG-23NG1V0	3/4''	23.0	28.5	50M
BG-29NB1V0	BG-29NG1V0	1''	29.0	34.5	50M
BG-36NB1V0	BG-36NG1V0	1 1/4''	36.0	42.5	50M
BG-48NB1V0	BG-48NG1V0	2''	48.0	54.5	25M
BG-11NB1V0	BG-11NG1V0	-	11.0	14.0	100M
BG-20NB1V0	BG-20NG1V0	-	20.0	25.0	50M
BG-25NB1V0	BG-25NG1V0	-	25.0	32.0	50M
