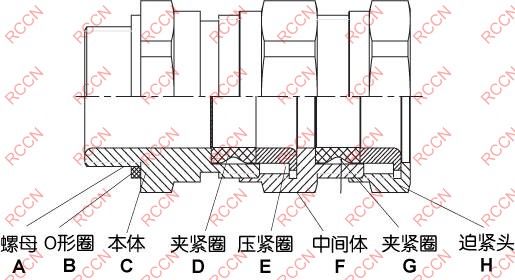

日成EX隔爆鎧裝型金屬電纜防水接頭

螺牙規格:公制螺牙(Metric),英制螺牙G。
產品材質:均采用黃銅鍍鎳制成,密封圈采用耐油丁腈橡膠(NBR)制成。
產品認證:歐洲CE,防爆EX認證
工作溫度:靜態-40°C至100°C
防護等級:在規定的卡口范圍內,并使用防水O形圈及夾緊圈旋緊迫緊頭,達到IP65。
產品特性:用于爆炸危險場所，固定非鎧裝電纜用。防爆設備，石油化工，煤礦或自動化工程均可適用。
特殊長度型號例:EX-M20×1.5/L=15
交貨周期:本品無常規備貨,交期2-3周。
目錄頁碼:45

型號 Item No	螺紋長度 Thread Length L1	本體橡膠 Outer sealing	頂部橡膠 Outer sealing	屏蔽層 Tape braid	配套螺母上限板厚 +Nut Max platethick	接合長度 Joint Length H	板手 Spanne SW	包裝 Std.Pkg Pcs
公制螺紋M
EX-M16×1.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-M16×1.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-M20×1.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-M20×1.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-M20×1.5-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-M25×1.5-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-M32×1.5-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-M40×1.5-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-M50×1.5-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-M50×1.5-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-M63×1.5-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-M63×1.5-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-M75×1.5-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-M75×1.5-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-M80×2.0-84	19	62-72	77-84	≤1.00	≤13.5	110	110
EX-M80×2.0-90	19	70-80	80-90	≤1.00	≤13.5	110	110
EX-M85×2.0-90	19	70-80	80-90	≤1.00	≤13.5	110	110
EX-M90×2.0-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-M90×2.0-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-M100 2.0-100	19	80-90	90-100	≤1.00	≤13.5	110	110
德制螺紋 PG
EX-PG9-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	100PCS
EX-PG9-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-PG13.5-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-PG13.5-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-PG13.5-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-PG21-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-PG29-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-PG36-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-PG42-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-PG42-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-PG48-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-PG48-66	19	50-56	58-66	≤0.80	≤13.5	76	81
美制螺紋NPT
EX-NPT1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-NPT1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-NPT1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-NPT1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-NPT1/2-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-NPT3/4-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-NPT1-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-NPT1-1/4-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-NPT1-1/2-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-NPT1-1/2-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-NPT2-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-NPT2-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-NPT2-1/2-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-NPT2-1/2-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-NPT3-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-NPT3-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-NPT3-1/2-100	19	80-90	90-100	≤1.00	≤13.5	110	110
英制螺紋G
EX-G1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24	50PCS
EX-G1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-G1/2-13	16	4-8.5	8.5-13.5	≤0.35	≤10.5	58	24
EX-G1/2-16	16	8-11.5	11.5-16	≤0.35	≤10.5	58	24
EX-G1/2-21	16	7-14	15.5-21	≤0.50	≤10.5	58	30	25PCS
EX-G3/4-28	16	13-20	20-28	≤0.50	≤10.5	58	36
EX-G1-34	16	19-26	26-34	≤0.55	≤10.5	65	44
EX-G1-1/4-41	16	25-32	33-41	≤0.80	≤10.5	72	54	1PCS
EX-G1-1/2-46	16	32-38	39-46	≤0.80	≤10.5	73	64
EX-G1-1/2-53	16	36-44	45-53	≤0.80	≤10.5	73	64
EX-G2-60	19	42-50	52-60	≤0.80	≤13.5	76	81
EX-G2-66	19	50-56	58-66	≤0.80	≤13.5	76	81
EX-G2-1/2-66	19	54-62	64-72	≤1.00	≤13.5	82	96
EX-G2-1/2-78	19	60-68	71-78	≤1.00	≤13.5	82	96
EX-G3-96	19	74-84	88-96	≤1.00	≤13.5	110	110
EX-G3-100	19	80-90	90-100	≤1.00	≤13.5	110	110
EX-G3-1/2-100	19	80-90	90-100	≤1.00	≤13.5	110	110
